ABB micro drives – ACS150 0.37 to 4 kW/0.5 to 5 hp Catalog

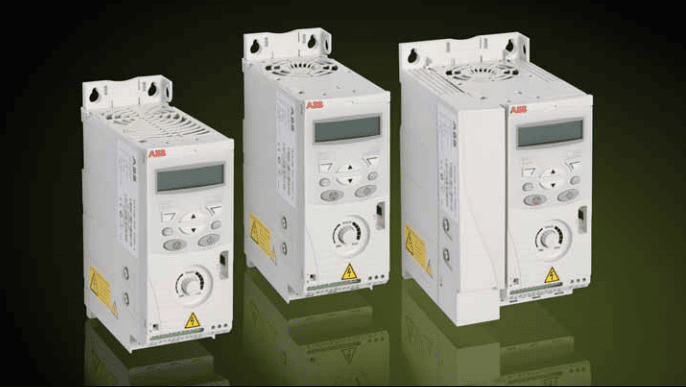

ACS150

Introduction to ABB ACS150

ABB micro drives

ABB micro drives are designed to be incorporated into a wide
variety of machines such as mixers, conveyors, fans or pumps
or anywhere where a fixed speed motor needs to go variable
speed motor.
The ABB micro drives meet the requirements of OEMs,
machinery builders and panel builders. These drives are
widely available through the ABB distribution network. The
drives are easy to select and provide a range of built-in
features as standard including PID control, brake chopper,
fixed keypad and speed control potentiometer.

Highlights

– Worldwide availability through logistical distributors
– User-friendly LCD control panel and integrated
potentiometer
– Flexible mounting alternatives
– PID control
– Integrated EMC filter
– Built-in brake chopper
– FlashDrop tool for fast drive commissioning

Our Main Business on :ACS800 ACS601 ACS550 ACH550 ACS355 ACS350 ACS310 ACS401 ACS150 ACS501 ACS101 ACS141 ACS143 ACS301 ACS311 ACS163 ACS504 ACS201…All the ABB INVERTER DRIVES we sell Made in USA! 100% Original!

Easily integrated drives for a wide range of applications、

ABB micro drives bring speed control benefits to a wide variety of applications.

In mixing applications the drive provides high starting torque which benefi ts the start of the mixing operation. The silent operation mode adjusts the switching frequency of the drive to a higher level after the high-torque start, resulting in lower audible noise. The FlashDrop tool provides a quick and safe way to confi gure multiple drives for identical mixer applications.

In conveyors the belt speed can be controlled using a drive and a motor. Production lines often have multiple stages, including conveyors, which need to be efficiently linked with
each other to provide high production output. A drive provides smooth start and stop of the conveyor, thereby reducing mechanical stress and lowering maintenance costs.

A heat pump system consists of an indoor unit with fan and an outdoor unit with a compressor and a blower. The heat pump cools indoor environment by gathering heat from the air, and transferring the heat outside. The outdoor unit uses the compressor and the blower to dissipate the heat. The cooled air is blown indoors by fans located in the indoor unit. Drive allows the user to variably control the cooling power based
on customer request. AC drives optimizes systems’ energy efficiency and smoothens system operation.

Fans are used for process cooling and ventilation in industrial, commercial and domestic environments. Using a drive to control air fl ow enables energy savings compared to mechanical fl ow control methods. An ABB drive has integrated PID control which provides optimal air flow by adjusting the fan speed based on a given reference value. Compact size and various mounting methods enable flexible system design.

ABB ACS150 INVERTER DRIVES Product Selection

Part numberManufacturerDescription
ACS150-03E-01A2-4ABBACS150 Three phase 0.37KW Variable Speed Drive
ACS150-03E-08A8-4ABBACS150 Three phase 4KW Variable Speed Drive
ACS150-01E-02A4-2ABBACS150 Single phase 0.37KW Variable Speed Drive
ACS150-03E-07A5-2ABBACS150 Three phase 1.5KW Variable Speed Drive
ACS150-03E-07A3-4ABBACS150 Three phase 3KW Variable Speed Drive
ACS150-03E-06A7-2ABBACS150 Three phase 1.1KW Variable Speed Drive
ACS150-03E-05A6-4ABBACS150 Three phase 2.2KW Variable Speed Drive
ACS150-03E-04A1-4ABBACS150 Three phase 1.5KW Variable Speed Drive
ACS150-03E-03A5-2ABBACS150 Three phase 0.55KW Variable Speed Drive
ACS150-03E-03A3-4ABBACS150 Three phase 1.1KW Variable Speed Drive
ACS150-03E-02A4-4ABBACS150 Three phase 0.75KW Variable Speed Drive
ACS150-03E-02A4-2ABBACS150 Three phase 0.37KW Variable Speed Drive
ACS150-03E-01A9-4ABBACS150 Three phase 0.55KW Variable Speed Drive
ACS150-01E-09A8-2ABBACS150 Single phase 2.2KW Variable Speed Drive
ACS150-01E-07A5-2ABBACS150 Single phase 1.5KW Variable Speed Drive
ACS150-01E-06A7-2ABBACS150 Single phase 1.1KW Variable Speed Drive
ACS150-01E-04A7-2ABBACS150 Single phase 0.75KW Variable Speed Drive
ACS150-03E-09A8-2ABBACS150 Three phase 2.2KW Variable Speed Drive
