ALLEN BRADLEY INVERTER DRIVES MANUFACTURED – PowerFlex 527 AC Drives

Our PowerFlex® 527 AC Drives are designed to work exclusively with our Logix Programmable Automation Controllers (PACs). This allows the drive to leverage the capabilities of the controller and use Studio 5000 Logix Designer™ to help simplify machine development and use. This streamlined approach uses motion instructions that are shared by PowerFlex 527 AC drives and Kinetix® servo drives, providing the same user experience for configuration, programming, and control of both types of drives.

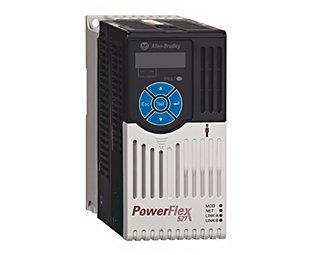

PowerFlex 527 AC Drives

Our Main Business on :PowerFlex 753,PowerFlex 753,PowerFlex 755,PowerFlex 755T ,PowerFlex 70,PowerFlex 700S,PowerFlex 700,PowerFlex 700L…All the ALLEN BRADLEY AC Drives we sell Made in America! 100% Original!

PowerFlex 527 AC Drives

Overview

Features

  • Power ratings of 0.4…22 kW / 0.5…30 Hp in global voltages from 100…600V
  • Offers built-in dual-port EtherNet/IP™ to support a variety of topologies as well as Device Level Ring functionality
  • Features Safe Torque-off as a standard feature that can be applied through either hardwired safety or Integrated Safety. Both are certified to SIL 3 / PLe Cat 3
  • Offers low-cost solution for machine parts, applications such as pumps, fans, in-feed and out-feed conveyors, that need simple speed control for induction motors
  • Provides the ability to transfer drive configuration files to a new machine
  • Reduces downtime and minimizes manual reconfiguration by using Logix PACs to detect a replaced drive and download all configuration settings over EtherNet/IP
  • Offers a new level of AC drive integration to help deliver a coordinated and synchronized machine

Certifications

  • UL
  • TUV
  • EAC
  • Semi-F47
  • ATEX
  • Marine (Lloyds)
  • RoHS
  • ACS156
  • CE Marked
  • cUL
  • RCM
  • KCC
  • REACH
Product Selection
Catalog Number Description
25C-A011N104 PowerFlex 527 AC Drive, with Embedded Dual Port EtherNet/IP and Integrated Safety, 240 VAC, 1 Phase, 3 HP, 2.2 kW Normal Duty; 3 HP, 2.2 kW Heavy Duty, Frame B, IP20 NEMA / Open Type, No Filter
25C-A011N114 PowerFlex 527 AC Drive, with Embedded Dual Port EtherNet/IP and Integrated Safety, 240 VAC, 1 Phase, 3 HP, 2.2 kW Normal Duty; 3 HP, 2.2 kW Heavy Duty, Frame B, IP20 NEMA / Open Type, Filter
25C-A2P5N104 PowerFlex 527 AC Drive, with Embedded Dual Port EtherNet/IP and Integrated Safety, 240 VAC, 1 Phase, 0.5 HP, 0.4 kW Normal Duty; 0.5 HP, 0.4 kW Heavy Duty, Frame A, IP20 NEMA / Open Type, No Filter
25C-A2P5N114 PowerFlex 527 AC Drive, with Embedded Dual Port EtherNet/IP and Integrated Safety, 240 VAC, 1 Phase, 0.5 HP, 0.4 kW Normal Duty; 0.5 HP, 0.4 kW Heavy Duty, Frame A, IP20 NEMA / Open Type, Filter
25C-A4P8N104 PowerFlex 527 AC Drive, with Embedded Dual Port EtherNet/IP and Integrated Safety, 240 VAC, 1 Phase, 1.0 HP, 0.75 kW Normal Duty; 1.0 HP, 0.75 kW Heavy Duty, Frame A, IP20 NEMA / Open Type, No Filter
25C-A4P8N114 PowerFlex 527 AC Drive, with Embedded Dual Port EtherNet/IP and Integrated Safety, 240 VAC, 1 Phase, 1.0 HP, 0.75 kW Normal Duty; 1.0 HP, 0.75 kW Heavy Duty, Frame A, IP20 NEMA / Open Type, Filter
25C-A8P0N104 PowerFlex 527 AC Drive, with Embedded Dual Port EtherNet/IP and Integrated Safety, 240 VAC, 1 Phase, 2 HP, 1.5 kW Normal Duty; 2 HP, 1.5 kW Heavy Duty, Frame B, IP20 NEMA / Open Type, No Filter
25C-A8P0N114 PowerFlex 527 AC Drive, with Embedded Dual Port EtherNet/IP and Integrated Safety, 240 VAC, 1 Phase, 2 HP, 1.5 kW Normal Duty; 2 HP, 1.5 kW Heavy Duty, Frame B, IP20 NEMA / Open Type, Filter
25C-B011N104 PowerFlex 527 AC Drive, with Embedded Dual Port EtherNet/IP and Integrated Safety, 240 VAC, 3 Phase, 3 HP, 2.2 kW Normal Duty; 3 HP, 2.2 kW Heavy Duty, Frame A, IP20 NEMA / Open Type, No Filter
25C-B017N104 PowerFlex 527 AC Drive, with Embedded Dual Port EtherNet/IP and Integrated Safety, 240 VAC, 3 Phase, 5 HP, 4 kW Normal Duty; 5 HP, 4 kW Heavy Duty, Frame B, IP20 NEMA / Open Type, No Filter
25C-B024N104 PowerFlex 527 AC Drive, with Embedded Dual Port EtherNet/IP and Integrated Safety, 240 VAC, 3 Phase, 7.5 HP, 5.5 kW Normal Duty; 7.5 HP, 5.5 kW Heavy Duty, Frame C, IP20 NEMA / Open Type, No Filter
25C-B032N104 PowerFlex 527 AC Drive, with Embedded Dual Port EtherNet/IP and Integrated Safety, 240 VAC, 3 Phase, 10 HP, 7.5 kW Normal Duty; 10 HP, 7.5 kW Heavy Duty, Frame D, IP20 NEMA / Open Type, No Filter
25C-B048N104 PowerFlex 527 AC Drive, with Embedded Dual Port EtherNet/IP and Integrated Safety, 240 VAC, 3 Phase, 15 HP, 11 kW Normal Duty; 10 HP, 7.5 kW Heavy Duty, Frame E, IP20 NEMA / Open Type, No Filter
25C-B062N104 PowerFlex 527 AC Drive, with Embedded Dual Port EtherNet/IP and Integrated Safety, 240 VAC, 3 Phase, 20 HP, 15 kW Normal Duty; 15 HP, 11 kW Heavy Duty, Frame E, IP20 NEMA / Open Type, No Filter
25C-B2P5N104 PowerFlex 527 AC Drive, with Embedded Dual Port EtherNet/IP and Integrated Safety, 240 VAC, 3 Phase, 0.5 HP, 0.4 kW Normal Duty; 0.5 HP, 0.4 kW Heavy Duty, Frame A, IP20 NEMA / Open Type, No Filter
25C-B5P0N104 PowerFlex 527 AC Drive, with Embedded Dual Port EtherNet/IP and Integrated Safety, 240 VAC, 3 Phase, 1.0 HP, 0.75 kW Normal Duty; 1.0 HP, 0.75 kW Heavy Duty, Frame A, IP20 NEMA / Open Type, No Filter
25C-B8P0N104 PowerFlex 527 AC Drive, with Embedded Dual Port EtherNet/IP and Integrated Safety, 240 VAC, 3 Phase, 2 HP, 1.5 kW Normal Duty; 2 HP, 1.5 kW Heavy Duty, Frame A, IP20 NEMA / Open Type, No Filter
25C-D010N104 PowerFlex 527 AC Drive, with Embedded Dual Port EtherNet/IP and Integrated Safety, 480 VAC, 3 Phase, 5 HP, 4 kW Normal Duty; 5 HP, 4 kW Heavy Duty, Frame B, IP20 NEMA / Open Type, No Filter
25C-D010N114 PowerFlex 527 AC Drive, with Embedded Dual Port EtherNet/IP and Integrated Safety, 480 VAC, 3 Phase, 5 HP, 4 kW Normal Duty; 5 HP, 4 kW Heavy Duty, Frame B, IP20 NEMA / Open Type, Filter
25C-D013N104 PowerFlex 527 AC Drive, with Embedded Dual Port EtherNet/IP and Integrated Safety, 480 VAC, 3 Phase, 7.5 HP, 5.5 kW Normal Duty; 7.5 HP, 5.5 kW Heavy Duty, Frame C, IP20 NEMA / Open Type, No Filter
25C-D013N114 PowerFlex 527 AC Drive, with Embedded Dual Port EtherNet/IP and Integrated Safety, 480 VAC, 3 Phase, 7.5 HP, 5.5 kW Normal Duty; 7.5 HP, 5.5 kW Heavy Duty, Frame C, IP20 NEMA / Open Type, Filter
25C-D017N104 PowerFlex 527 AC Drive, with Embedded Dual Port EtherNet/IP and Integrated Safety, 480 VAC, 3 Phase, 10 HP, 7.5 kW Normal Duty; 10 HP, 7.5 kW Heavy Duty, Frame C, IP20 NEMA / Open Type, No Filter
25C-D017N114 PowerFlex 527 AC Drive, with Embedded Dual Port EtherNet/IP and Integrated Safety, 480 VAC, 3 Phase, 10 HP, 7.5 kW Normal Duty; 10 HP, 7.5 kW Heavy Duty, Frame C, IP20 NEMA / Open Type, Filter
25C-D024N104 PowerFlex 527 AC Drive, with Embedded Dual Port EtherNet/IP and Integrated Safety, 480 VAC, 3 Phase, 15 HP, 11 kW Normal Duty; 15 HP, 11 kW Heavy Duty, Frame D, IP20 NEMA / Open Type, No Filter
25C-D024N114 PowerFlex 527 AC Drive, with Embedded Dual Port EtherNet/IP and Integrated Safety, 480 VAC, 3 Phase, 15 HP, 11 kW Normal Duty; 15 HP, 11 kW Heavy Duty, Frame D, IP20 NEMA / Open Type, Filter
25C-D030N104 PowerFlex 527 AC Drive, with Embedded Dual Port EtherNet/IP and Integrated Safety, 480 VAC, 3 Phase, 20 HP, 15 kW Normal Duty; 15 HP, 11 kW Heavy Duty, Frame D, IP20 NEMA / Open Type, No Filter
25C-D030N114 PowerFlex 527 AC Drive, with Embedded Dual Port EtherNet/IP and Integrated Safety, 480 VAC, 3 Phase, 20 HP, 15 kW Normal Duty; 15 HP, 11 kW Heavy Duty, Frame D, IP20 NEMA / Open Type, Filter
25C-D037N114 PowerFlex 527 AC Drive, with Embedded Dual Port EtherNet/IP and Integrated Safety, 480 VAC, 3 Phase, 25 HP, 18.5 kW Normal Duty; 20 HP, 15 kW Heavy Duty, Frame E, IP20 NEMA / Open Type, Filter
25C-D043N114 PowerFlex 527 AC Drive, with Embedded Dual Port EtherNet/IP and Integrated Safety, 480 VAC, 3 Phase, 30 HP, 22 kW Normal Duty; 25 HP, 18.5 kW Heavy Duty, Frame E, IP20 NEMA / Open Type, Filter
25C-D1P4N104 PowerFlex 527 AC Drive, with Embedded Dual Port EtherNet/IP and Integrated Safety, 480 VAC, 3 Phase, 0.5 HP, 0.4 kW Normal Duty; 0.5 HP, 0.4 kW Heavy Duty, Frame A, IP20 NEMA / Open Type, No Filter
25C-D1P4N114 PowerFlex 527 AC Drive, with Embedded Dual Port EtherNet/IP and Integrated Safety, 480 VAC, 3 Phase, 0.5 HP, 0.4 kW Normal Duty; 0.5 HP, 0.4 kW Heavy Duty, Frame A, IP20 NEMA / Open Type, Filter
25C-D2P3N104 PowerFlex 527 AC Drive, with Embedded Dual Port EtherNet/IP and Integrated Safety, 480 VAC, 3 Phase, 1.0 HP, 0.75 kW Normal Duty; 1.0 HP, 0.75 kW Heavy Duty, Frame A, IP20 NEMA / Open Type, No Filter
25C-D2P3N114 PowerFlex 527 AC Drive, with Embedded Dual Port EtherNet/IP and Integrated Safety, 480 VAC, 3 Phase, 1.0 HP, 0.75 kW Normal Duty; 1.0 HP, 0.75 kW Heavy Duty, Frame A, IP20 NEMA / Open Type, Filter
25C-D4P0N104 PowerFlex 527 AC Drive, with Embedded Dual Port EtherNet/IP and Integrated Safety, 480 VAC, 3 Phase, 2 HP, 1.5 kW Normal Duty; 2 HP, 1.5 kW Heavy Duty, Frame A, IP20 NEMA / Open Type, No Filter
25C-D4P0N114 PowerFlex 527 AC Drive, with Embedded Dual Port EtherNet/IP and Integrated Safety, 480 VAC, 3 Phase, 2 HP, 1.5 kW Normal Duty; 2 HP, 1.5 kW Heavy Duty, Frame A, IP20 NEMA / Open Type, Filter
25C-D6P0N104 PowerFlex 527 AC Drive, with Embedded Dual Port EtherNet/IP and Integrated Safety, 480 VAC, 3 Phase, 3 HP, 2.2 kW Normal Duty; 3 HP, 2.2 kW Heavy Duty, Frame A, IP20 NEMA / Open Type, No Filter
25C-D6P0N114 PowerFlex 527 AC Drive, with Embedded Dual Port EtherNet/IP and Integrated Safety, 480 VAC, 3 Phase, 3 HP, 2.2 kW Normal Duty; 3 HP, 2.2 kW Heavy Duty, Frame A, IP20 NEMA / Open Type, Filter
25C-E012N104 PowerFlex 527 AC Drive, with Embedded Dual Port EtherNet/IP and Integrated Safety, 600 VAC, 3 Phase, 10 HP, 7.5 kW Normal Duty; 10 HP, 7.5 kW Heavy Duty, Frame C, IP20 NEMA / Open Type, No Filter
25C-E019N104 PowerFlex 527 AC Drive, with Embedded Dual Port EtherNet/IP and Integrated Safety, 600 VAC, 3 Phase, 15 HP, 11 kW Normal Duty; 15 HP, 11 kW Heavy Duty, Frame D, IP20 NEMA / Open Type, No Filter
25C-E022N104 PowerFlex 527 AC Drive, with Embedded Dual Port EtherNet/IP and Integrated Safety, 600 VAC, 3 Phase, 20 HP, 15 kW Normal Duty; 15 HP, 11 kW Heavy Duty, Frame D, IP20 NEMA / Open Type, No Filter
25C-E027N104 PowerFlex 527 AC Drive, with Embedded Dual Port EtherNet/IP and Integrated Safety, 600 VAC, 3 Phase, 25 HP, 18.5 kW Normal Duty; 20 HP, 15 kW Heavy Duty, Frame E, IP20 NEMA / Open Type, No Filter
25C-E032N104 PowerFlex 527 AC Drive, with Embedded Dual Port EtherNet/IP and Integrated Safety, 600 VAC, 3 Phase, 30 HP, 22 kW Normal Duty; 25 HP, 18.5 kW Heavy Duty, Frame E, IP20 NEMA / Open Type, No Filter
25C-E0P9N104 PowerFlex 527 AC Drive, with Embedded Dual Port EtherNet/IP and Integrated Safety, 600 VAC, 3 Phase, 0.5 HP, 0.4 kW Normal Duty; 0.5 HP, 0.4 kW Heavy Duty, Frame A, IP20 NEMA / Open Type, No Filter
25C-E1P7N104 PowerFlex 527 AC Drive, with Embedded Dual Port EtherNet/IP and Integrated Safety, 600 VAC, 3 Phase, 1.0 HP, 0.75 kW Normal Duty; 1.0 HP, 0.75 kW Heavy Duty, Frame A, IP20 NEMA / Open Type, No Filter
25C-E3P0N104 PowerFlex 527 AC Drive, with Embedded Dual Port EtherNet/IP and Integrated Safety, 600 VAC, 3 Phase, 2 HP, 1.5 kW Normal Duty; 2 HP, 1.5 kW Heavy Duty, Frame A, IP20 NEMA / Open Type, No Filter
25C-E4P2N104 PowerFlex 527 AC Drive, with Embedded Dual Port EtherNet/IP and Integrated Safety, 600 VAC, 3 Phase, 3 HP, 2.2 kW Normal Duty; 3 HP, 2.2 kW Heavy Duty, Frame A, IP20 NEMA / Open Type, No Filter
25C-E6P6N104 PowerFlex 527 AC Drive, with Embedded Dual Port EtherNet/IP and Integrated Safety, 600 VAC, 3 Phase, 5 HP, 4 kW Normal Duty; 5 HP, 4 kW Heavy Duty, Frame B, IP20 NEMA / Open Type, No Filter
25C-E9P9N104 PowerFlex 527 AC Drive, with Embedded Dual Port EtherNet/IP and Integrated Safety, 600 VAC, 3 Phase, 7.5 HP, 5.5 kW Normal Duty; 7.5 HP, 5.5 kW Heavy Duty, Frame C, IP20 NEMA / Open Type, No Filter
25C-V2P5N104 PowerFlex 527 AC Drive, with Embedded Dual Port EtherNet/IP and Integrated Safety, 120 VAC, 1 Phase, 0.5 HP, 0.4 kW Normal Duty; 0.5 HP, 0.4 kW Heavy Duty, Frame A, IP20 NEMA / Open Type, No Filter
25C-V4P8N104 PowerFlex 527 AC Drive, with Embedded Dual Port EtherNet/IP and Integrated Safety, 120 VAC, 1 Phase, 1.0 HP, 0.75 kW Normal Duty; 1.0 HP, 0.75 kW Heavy Duty, Frame B, IP20 NEMA / Open Type, No Filter
25C-V6P0N104 PowerFlex 527 AC Drive, with Embedded Dual Port EtherNet/IP and Integrated Safety, 120 VAC, 1 Phase, 1.5 HP, 1.1 kW Normal Duty; 1.5 HP, 1.1 kW Heavy Duty, Frame B, IP20 NEMA / Open Type, No Filter
Software

Studio 5000 Logix Designer integrates with PowerFlex® Drives

  • Configuration and programming is shared with our Kinetix® servo drives for a common user experience that helps to reduce cost and complexity
  • Motion instructions within the software help to simplify machine development and operation
  • Once programmed, drive configuration files can be more easily transferred to a new machine without painstaking, line-by-line copying
  • Logix integration helps deliver a high level of motor coordination
  • Logix PACs can automatically detect a replaced drive and download all configuration settings over EtherNet/IP, helping reduce downtime
Configuration and SelectionTools
  • CrossWorks — Convert competitive catalog numbers to similar Allen-Bradley® products.
  • eCADWorks — Select product 3D-CAD drawings in AutoCAD®.
  • Integrated Architecture Builder — Select hardware and generate bills of materials for projects.
  • Integrated Architecture Tools — Tools to help you plan and configure an Integrated Architecture™ system.
  • ProposalWorks — Build complete quotes and proposals.

Product manuals

# File Description Date added File size Downloads
1 pdf PowerFlex 527 AC Drive Technical Data PowerFlex 527 AC Drive Technical Data
09/27/2017 16:19 3 MB 218
2 pdf PowerFlex 527 AC Drives Product Profile PowerFlex 527 AC Drives Product Profile
09/27/2017 16:19 650 KB 125
