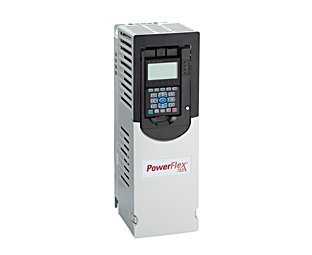

PowerFlex 753 AC Drives

PowerFlex® 753 AC Drives are cost-effective and easy to use in general purpose applications requiring safety features. They come standard with built-in I/O, which is ideal for machine builders and system integrators who want to reduce engineering costs, deliver machines to market faster, and meet end user demand for more productive machines. Select size-optimized drives for low-power applications where you have limited space available. The Dual-port EtherNet/IP™ Option Module offers flexible, cost-effective methods for leveraging EtherNet/IP networks.

Our Main Business on :PowerFlex 753,PowerFlex 753,PowerFlex 755,PowerFlex 755T ,PowerFlex 70,PowerFlex 700S,PowerFlex 700,PowerFlex 700L…All the ALLEN BRADLEY AC Drives we sell Made in America! 100% Original!

PowerFlex 753 AC Drives

Features

  • Power ratings:
    • 380…480V: 0.75…250 kW / 1.0…350 Hp / 2.1…456 A
    • 600V: 1.0…300 Hp / 1.7…289 A
    • 690V: 7.5…250 kW / 12…263 A
  • IP00/IP20 NEMA/UL Type Open, flange mount, IP54 NEMA/UL Type 12
  • Dual-port EtherNet/IP™ Option Module helps you leverage EtherNet/IP networks, minimize the number of managed switches, and reduce cabling needs when using Device Level Ring (DLR) networks
  • V/Hz control, vector control with FORCE™ technology and sensorless vector control
  • Predictive diagnostics to extend the life of cooling fans and relay outputs
  • Slot-based architecture provides three option slots for feedback, safety, communications, additional I/O, or an auxiliary power supply
  • Configuration and programming via integral LCD Human Interface Module (HIM), DriveTools SP software, Connected Components Workbench software, or Studio 5000 Logix Designer® software

Available Embedded Safety Options

  • Safe Torque-Off option is certified at PLe/SIL3 CAT 3
  • Safe Speed Monitor combines the Safe Torque-Off capability and an embedded safety relay with the Rockwell Automation® Safe-Speed Control core technology in one hardware option embedded in the drive. Certified PLe/SIL3 CAT 4
Product Selection
Catalog Number Description
20F11FD011AA0NNNNN PowerFlex 753 AC Drive, with Embedded I/O, Air Cooled, AC Input with DC Terminals, Flange Type, 11 Amps, (Fr1 7.5HP ND, 5HP HD/Fr2 7.5HP ND, 7.5HP HD), 480 VAC, 3 PH, Frame 2, Filtered, CM Jumper Removed, DB Transistor, Blank (No HIM)
20F11FD014AA0NNNNN PowerFlex 753 AC Drive, with Embedded I/O, Air Cooled, AC Input with DC Terminals, Flange Type, 14 Amps, 10HP ND, 7.5HP HD, 480 VAC, 3 PH, Frame 2, Filtered, CM Jumper Removed, DB Transistor, Blank (No HIM)
20F11FD022AA0NNNNN PowerFlex 753 AC Drive, with Embedded I/O, Air Cooled, AC Input with DC Terminals, Flange Type, 22 Amps, 15HP ND, 10HP HD, 480 VAC, 3 PH, Frame 2, Filtered, CM Jumper Removed, DB Transistor, Blank (No HIM)
20F11FD027AA0NNNNN PowerFlex 753 AC Drive, with Embedded I/O, Air Cooled, AC Input with DC Terminals, Flange Type, 27 Amps, 20HP ND, 15HP HD, 480 VAC, 3 PH, Frame 3, Filtered, CM Jumper Removed, DB Transistor, Blank (No HIM)
20F11FD034AA0NNNNN PowerFlex 753 AC Drive, with Embedded I/O, Air Cooled, AC Input with DC Terminals, Flange Type, 34 Amps, 25HP ND, 20HP HD, 480 VAC, 3 PH, Frame 3, Filtered, CM Jumper Removed, DB Transistor, Blank (No HIM)
20F11FD040AA0NNNNN PowerFlex 753 AC Drive, with Embedded I/O, Air Cooled, AC Input with DC Terminals, Flange Type, 40 Amps, 30HP ND, 25HP HD, 480 VAC, 3 PH, Frame 3, Filtered, CM Jumper Removed, DB Transistor, Blank (No HIM)
20F11FD052AA0NNNNN PowerFlex 753 AC Drive, with Embedded I/O, Air Cooled, AC Input with DC Terminals, Flange Type, 52 Amps, 40HP ND, 30HP HD, 480 VAC, 3 PH, Frame 4, Filtered, CM Jumper Removed, DB Transistor, Blank (No HIM)
20F11FD065AA0NNNNN PowerFlex 753 AC Drive, with Embedded I/O, Air Cooled, AC Input with DC Terminals, Flange Type, 65 Amps, 50HP ND, 40HP HD, 480 VAC, 3 PH, Frame 4, Filtered, CM Jumper Removed, DB Transistor, Blank (No HIM)
20F11FD077AA0NNNNN PowerFlex 753 AC Drive, with Embedded I/O, Air Cooled, AC Input with DC Terminals, Flange Type, 77 Amps, 60HP ND, 50HP HD, 480 VAC, 3 PH, Frame 5, Filtered, CM Jumper Removed, DB Transistor, Blank (No HIM)
20F11FD096AA0NNNNN PowerFlex 753 AC Drive, with Embedded I/O, Air Cooled, AC Input with DC Terminals, Flange Type, 96 Amps, 75HP ND, 60HP HD, 480 VAC, 3 PH, Frame 5, Filtered, CM Jumper Removed, DB Transistor, Blank (No HIM)
20F11FD2P1AA0NNNNN PowerFlex 753 AC Drive, with Embedded I/O, Air Cooled, AC Input with DC Terminals, Flange Type, 2.1 Amps, (Fr1 1HP ND, 0.5HP HD/Fr2 1HP ND, 1HP HD), 480 VAC, 3 PH, Frame 2, Filtered, CM Jumper Removed, DB Transistor, Blank (No HIM)
20F11FD3P4AA0NNNNN PowerFlex 753 AC Drive, with Embedded I/O, Air Cooled, AC Input with DC Terminals, Flange Type, 3.4 Amps, (Fr1 2HP ND, 1.5HP HD/Fr2 2HP ND, 2HP HD), 480 VAC, 3 PH, Frame 2, Filtered, CM Jumper Removed, DB Transistor, Blank (No HIM)
20F11FD5P0AA0NNNNN PowerFlex 753 AC Drive, with Embedded I/O, Air Cooled, AC Input with DC Terminals, Flange Type, 5 Amps, (Fr1 3HP ND, 2HP HD/Fr2 3HP ND, 3HP HD), 480 VAC, 3 PH, Frame 2, Filtered, CM Jumper Removed, DB Transistor, Blank (No HIM)
20F11FD8P0AA0NNNNN PowerFlex 753 AC Drive, with Embedded I/O, Air Cooled, AC Input with DC Terminals, Flange Type, 8 Amps, (Fr1 5HP ND, 3HP HD/Fr2 5HP ND, 5HP HD), 480 VAC, 3 PH, Frame 2, Filtered, CM Jumper Removed, DB Transistor, Blank (No HIM)
20F11FE011AA0NNNNN PowerFlex 753 AC Drive, with Embedded I/O, Air Cooled, AC Input with DC Terminals, Flange Type, 11 Amps, 10HP ND, 7.5HP HD, 600 VAC, 3PH, Frame 3, Filtered, CM Jumper Removed, DB Transistor, Blank (No HIM)
20F11FE022AA0NNNNN PowerFlex 753 AC Drive, with Embedded I/O, Air Cooled, AC Input with DC Terminals, Flange Type, 22 Amps, 20HP ND, 15HP HD, 600 VAC, 3PH, Frame 3, Filtered, CM Jumper Removed, DB Transistor, Blank (No HIM)
20F11FE027AA0NNNNN PowerFlex 753 AC Drive, with Embedded I/O, Air Cooled, AC Input with DC Terminals, Flange Type, 27 Amps, 25HP ND, 20HP HD, 600 VAC, 3PH, Frame 4, Filtered, CM Jumper Removed, DB Transistor, Blank (No HIM)
20F11FE032AA0NNNNN PowerFlex 753 AC Drive, with Embedded I/O, Air Cooled, AC Input with DC Terminals, Flange Type, 32 Amps, 30HP ND, 25HP HD, 600 VAC, 3PH, Frame 4, Filtered, CM Jumper Removed, DB Transistor, Blank (No HIM)
20F11FE041JA0NNNNN PowerFlex 753 AC Drive, with Embedded I/O, Air Cooled, AC Input with DC Terminals, Flange Type, 41 Amps, 40HP ND, 30HP HD, 600 VAC, 3PH, Frame 5, Filtered, CM Jumper Installed, DB Transistor, Blank (No HIM)
20F11FE052AA0NNNNN PowerFlex 753 AC Drive, with Embedded I/O, Air Cooled, AC Input with DC Terminals, Flange Type, 52 Amps, 50HP ND, 40HP HD, 600 VAC, 3PH, Frame 5, Filtered, CM Jumper Removed, DB Transistor, Blank (No HIM)
20F11GD011AA0NNNNN PowerFlex 753 AC Drive, with Embedded I/O, Air Cooled, AC Input with DC Terminals, Type 12 / IP54, 11 Amps, (Fr1 7.5HP ND, 5HP HD/Fr2 7.5HP ND, 7.5HP HD), 480 VAC, 3 PH, Frame 2, Filtered, CM Jumper Removed, DB Transistor, Blank (No HIM)
20F11GD014AA0NNNNN PowerFlex 753 AC Drive, with Embedded I/O, Air Cooled, AC Input with DC Terminals, Type 12 / IP54, 14 Amps, 10HP ND, 7.5HP HD, 480 VAC, 3 PH, Frame 2, Filtered, CM Jumper Removed, DB Transistor, Blank (No HIM)
20F11GD022AA0NNNNN PowerFlex 753 AC Drive, with Embedded I/O, Air Cooled, AC Input with DC Terminals, Type 12 / IP54, 22 Amps, 15HP ND, 10HP HD, 480 VAC, 3 PH, Frame 2, Filtered, CM Jumper Removed, DB Transistor, Blank (No HIM)
20F11GD027AA0NNNNN PowerFlex 753 AC Drive, with Embedded I/O, Air Cooled, AC Input with DC Terminals, Type 12 / IP54, 27 Amps, 20HP ND, 15HP HD, 480 VAC, 3 PH, Frame 3, Filtered, CM Jumper Removed, DB Transistor, Blank (No HIM)
20F11GD034AA0NNNNN PowerFlex 753 AC Drive, with Embedded I/O, Air Cooled, AC Input with DC Terminals, Type 12 / IP54, 34 Amps, 25HP ND, 20HP HD, 480 VAC, 3 PH, Frame 3, Filtered, CM Jumper Removed, DB Transistor, Blank (No HIM)
20F11GD040AA0NNNNN PowerFlex 753 AC Drive, with Embedded I/O, Air Cooled, AC Input with DC Terminals, Type 12 / IP54, 40 Amps, 30HP ND, 25HP HD, 480 VAC, 3 PH, Frame 3, Filtered, CM Jumper Removed, DB Transistor, Blank (No HIM)
20F11GD052AA0NNNNN PowerFlex 753 AC Drive, with Embedded I/O, Air Cooled, AC Input with DC Terminals, Type 12 / IP54, 52 Amps, 40HP ND, 30HP HD, 480 VAC, 3 PH, Frame 4, Filtered, CM Jumper Removed, DB Transistor, Blank (No HIM)
20F11GD065AA0NNNNN PowerFlex 753 AC Drive, with Embedded I/O, Air Cooled, AC Input with DC Terminals, Type 12 / IP54, 65 Amps, 50HP ND, 40HP HD, 480 VAC, 3 PH, Frame 5, Filtered, CM Jumper Removed, DB Transistor, Blank (No HIM)
20F11GD077AA0NNNNN PowerFlex 753 AC Drive, with Embedded I/O, Air Cooled, AC Input with DC Terminals, Type 12 / IP54, 77 Amps, 60HP ND, 50HP HD, 480 VAC, 3 PH, Frame 5, Filtered, CM Jumper Removed, DB Transistor, Blank (No HIM)
20F11GD2P1AA0NNNNN PowerFlex 753 AC Drive, with Embedded I/O, Air Cooled, AC Input with DC Terminals, Type 12 / IP54, 2.1 Amps, (Fr1 1HP ND, 0.5HP HD/Fr2 1HP ND, 1HP HD), 480 VAC, 3 PH, Frame 2, Filtered, CM Jumper Removed, DB Transistor, Blank (No HIM)
20F11GD3P4AA0NNNNN PowerFlex 753 AC Drive, with Embedded I/O, Air Cooled, AC Input with DC Terminals, Type 12 / IP54, 3.4 Amps, (Fr1 2HP ND, 1.5HP HD/Fr2 2HP ND, 2HP HD), 480 VAC, 3 PH, Frame 2, Filtered, CM Jumper Removed, DB Transistor, Blank (No HIM)
20F11GD5P0AA0NNNNN PowerFlex 753 AC Drive, with Embedded I/O, Air Cooled, AC Input with DC Terminals, Type 12 / IP54, 5 Amps, (Fr1 3HP ND, 2HP HD/Fr2 3HP ND, 3HP HD), 480 VAC, 3 PH, Frame 2, Filtered, CM Jumper Removed, DB Transistor, Blank (No HIM)
20F11GD8P0AA0NNNNN PowerFlex 753 AC Drive, with Embedded I/O, Air Cooled, AC Input with DC Terminals, Type 12 / IP54, 8 Amps, (Fr1 5HP ND, 3HP HD/Fr2 5HP ND, 5HP HD), 480 VAC, 3 PH, Frame 2, Filtered, CM Jumper Removed, DB Transistor, Blank (No HIM)
20F11GE011AA0NNNNN PowerFlex 753 AC Drive, with Embedded I/O, Air Cooled, AC Input with DC Terminals, Type 12 / IP54, 11 Amps, 10HP ND, 7.5HP HD, 600 VAC, 3PH, Frame 3, Filtered, CM Jumper Removed, DB Transistor, Blank (No HIM)
20F11GE032AA0NNNNN PowerFlex 753 AC Drive, with Embedded I/O, Air Cooled, AC Input with DC Terminals, Type 12 / IP54, 32 Amps, 30HP ND, 25HP HD, 600 VAC, 3PH, Frame 4, Filtered, CM Jumper Removed, DB Transistor, Blank (No HIM)
20F11GE1P7AA0NNNNN PowerFlex 753 AC Drive, with Embedded I/O, Air Cooled, AC Input with DC Terminals, Type 12 / IP54, 1.7 Amps, 1HP ND, 0.5HP HD, 600 VAC, 3PH, Frame 3, Filtered, CM Jumper Removed, DB Transistor, Blank (No HIM)
20F11GE6P1AA0NNNNN PowerFlex 753 AC Drive, with Embedded I/O, Air Cooled, AC Input with DC Terminals, Type 12 / IP54, 6.1 Amps, 5HP ND, 3HP HD, 600 VAC, 3PH, Frame 3, Filtered, CM Jumper Removed, DB Transistor, Blank (No HIM)
20F11ND011AA0NNNNN PowerFlex 753 AC Drive, with Embedded I/O, Air Cooled, AC Input with DC Terminals, Open Type, 11 Amps, (Fr1 7.5HP ND, 5HP HD/Fr2 7.5HP ND, 7.5HP HD), 480 VAC, 3 PH, Frame 2, Filtered, CM Jumper Removed, DB Transistor, Blank (No HIM)
20F11ND014AA0NNNNN PowerFlex 753 AC Drive, with Embedded I/O, Air Cooled, AC Input with DC Terminals, Open Type, 14 Amps, 10HP ND, 7.5HP HD, 480 VAC, 3 PH, Frame 2, Filtered, CM Jumper Removed, DB Transistor, Blank (No HIM)
20F11ND022AA0NNNNN PowerFlex 753 AC Drive, with Embedded I/O, Air Cooled, AC Input with DC Terminals, Open Type, 22 Amps, 15HP ND, 10HP HD, 480 VAC, 3 PH, Frame 2, Filtered, CM Jumper Removed, DB Transistor, Blank (No HIM)
20F11ND027AA0NNNNN PowerFlex 753 AC Drive, with Embedded I/O, Air Cooled, AC Input with DC Terminals, Open Type, 27 Amps, 20HP ND, 15HP HD, 480 VAC, 3 PH, Frame 3, Filtered, CM Jumper Removed, DB Transistor, Blank (No HIM)
20F11ND034AA0NNNNN PowerFlex 753 AC Drive, with Embedded I/O, Air Cooled, AC Input with DC Terminals, Open Type, 34 Amps, 25HP ND, 20HP HD, 480 VAC, 3 PH, Frame 3, Filtered, CM Jumper Removed, DB Transistor, Blank (No HIM)
20F11ND040AA0NNNNN PowerFlex 753 AC Drive, with Embedded I/O, Air Cooled, AC Input with DC Terminals, Open Type, 40 Amps, 30HP ND, 25HP HD, 480 VAC, 3 PH, Frame 3, Filtered, CM Jumper Removed, DB Transistor, Blank (No HIM)
20F11ND052AA0NNNNN PowerFlex 753 AC Drive, with Embedded I/O, Air Cooled, AC Input with DC Terminals, Open Type, 52 Amps, 40HP ND, 30HP HD, 480 VAC, 3 PH, Frame 4, Filtered, CM Jumper Removed, DB Transistor, Blank (No HIM)
20F11ND065AA0NNNNN PowerFlex 753 AC Drive, with Embedded I/O, Air Cooled, AC Input with DC Terminals, Open Type, 65 Amps, 50HP ND, 40HP HD, 480 VAC, 3 PH, Frame 4, Filtered, CM Jumper Removed, DB Transistor, Blank (No HIM)
20F11ND077AA0NNNNN PowerFlex 753 AC Drive, with Embedded I/O, Air Cooled, AC Input with DC Terminals, Open Type, 77 Amps, 60HP ND, 50HP HD, 480 VAC, 3 PH, Frame 5, Filtered, CM Jumper Removed, DB Transistor, Blank (No HIM)
20F11ND096AA0NNNNN PowerFlex 753 AC Drive, with Embedded I/O, Air Cooled, AC Input with DC Terminals, Open Type, 96 Amps, 75HP ND, 60HP HD, 480 VAC, 3 PH, Frame 5, Filtered, CM Jumper Removed, DB Transistor, Blank (No HIM)
20F11ND2P1AA0NNNNN PowerFlex 753 AC Drive, with Embedded I/O, Air Cooled, AC Input with DC Terminals, Open Type, 2.1 Amps, (Fr1 1HP ND, 0.5HP HD/Fr2 1HP ND, 1HP HD), 480 VAC, 3 PH, Frame 2, Filtered, CM Jumper Removed, DB Transistor, Blank (No HIM)
20F11ND3P4AA0NNNNN PowerFlex 753 AC Drive, with Embedded I/O, Air Cooled, AC Input with DC Terminals, Open Type, 3.4 Amps, (Fr1 2HP ND, 1.5HP HD/Fr2 2HP ND, 2HP HD), 480 VAC, 3 PH, Frame 2, Filtered, CM Jumper Removed, DB Transistor, Blank (No HIM)
20F11ND5P0AA0NNNNN PowerFlex 753 AC Drive, with Embedded I/O, Air Cooled, AC Input with DC Terminals, Open Type, 5 Amps, (Fr1 3HP ND, 2HP HD/Fr2 3HP ND, 3HP HD), 480 VAC, 3 PH, Frame 2, Filtered, CM Jumper Removed, DB Transistor, Blank (No HIM)
20F11ND8P0AA0NNNNN PowerFlex 753 AC Drive, with Embedded I/O, Air Cooled, AC Input with DC Terminals, Open Type, 8 Amps, (Fr1 5HP ND, 3HP HD/Fr2 5HP ND, 5HP HD), 480 VAC, 3 PH, Frame 2, Filtered, CM Jumper Removed, DB Transistor, Blank (No HIM)
20F11NE011AA0NNNNN PowerFlex 753 AC Drive, with Embedded I/O, Air Cooled, AC Input with DC Terminals, Open Type, 11 Amps, 10HP ND, 7.5HP HD, 600 VAC, 3PH, Frame 3, Filtered, CM Jumper Removed, DB Transistor, Blank (No HIM)
20F11NE017AA0NNNNN PowerFlex 753 AC Drive, with Embedded I/O, Air Cooled, AC Input with DC Terminals, Open Type, 17 Amps, 15HP ND, 10HP HD, 600 VAC, 3PH, Frame 3, Filtered, CM Jumper Removed, DB Transistor, Blank (No HIM)
20F11NE017JA0NNNNN PowerFlex 753 AC Drive, with Embedded I/O, Air Cooled, AC Input with DC Terminals, Open Type, 17 Amps, 15HP ND, 10HP HD, 600 VAC, 3PH, Frame 3, Filtered, CM Jumper Installed, DB Transistor, Blank (No HIM)
20F11NE022AA0NNNNN PowerFlex 753 AC Drive, with Embedded I/O, Air Cooled, AC Input with DC Terminals, Open Type, 22 Amps, 20HP ND, 15HP HD, 600 VAC, 3PH, Frame 3, Filtered, CM Jumper Removed, DB Transistor, Blank (No HIM)
20F11NE027AA0NNNNN PowerFlex 753 AC Drive, with Embedded I/O, Air Cooled, AC Input with DC Terminals, Open Type, 27 Amps, 25HP ND, 20HP HD, 600 VAC, 3PH, Frame 4, Filtered, CM Jumper Removed, DB Transistor, Blank (No HIM)
20F11NE027JA0NNNNN PowerFlex 753 AC Drive, with Embedded I/O, Air Cooled, AC Input with DC Terminals, Open Type, 27 Amps, 25HP ND, 20HP HD, 600 VAC, 3PH, Frame 4, Filtered, CM Jumper Installed, DB Transistor, Blank (No HIM)
20F11NE032AA0NNNNN PowerFlex 753 AC Drive, with Embedded I/O, Air Cooled, AC Input with DC Terminals, Open Type, 32 Amps, 30HP ND, 25HP HD, 600 VAC, 3PH, Frame 4, Filtered, CM Jumper Removed, DB Transistor, Blank (No HIM)
20F11NE041AA0NNNNN PowerFlex 753 AC Drive, with Embedded I/O, Air Cooled, AC Input with DC Terminals, Open Type, 41 Amps, 40HP ND, 30HP HD, 600 VAC, 3PH, Frame 5, Filtered, CM Jumper Removed, DB Transistor, Blank (No HIM)
20F11NE041JA0NNNNN PowerFlex 753 AC Drive, with Embedded I/O, Air Cooled, AC Input with DC Terminals, Open Type, 41 Amps, 40HP ND, 30HP HD, 600 VAC, 3PH, Frame 5, Filtered, CM Jumper Installed, DB Transistor, Blank (No HIM)
20F11NE052AA0NNNNN PowerFlex 753 AC Drive, with Embedded I/O, Air Cooled, AC Input with DC Terminals, Open Type, 52 Amps, 50HP ND, 40HP HD, 600 VAC, 3PH, Frame 5, Filtered, CM Jumper Removed, DB Transistor, Blank (No HIM)
20F11NE1P7AA0NNNNN PowerFlex 753 AC Drive, with Embedded I/O, Air Cooled, AC Input with DC Terminals, Open Type, 1.7 Amps, 1HP ND, 0.5HP HD, 600 VAC, 3PH, Frame 3, Filtered, CM Jumper Removed, DB Transistor, Blank (No HIM)
20F11NE1P7JA0NNNNN PowerFlex 753 AC Drive, with Embedded I/O, Air Cooled, AC Input with DC Terminals, Open Type, 1.7 Amps, 1HP ND, 0.5HP HD, 600 VAC, 3PH, Frame 3, Filtered, CM Jumper Installed, DB Transistor, Blank (No HIM)
20F11NE2P7AA0NNNNN PowerFlex 753 AC Drive, with Embedded I/O, Air Cooled, AC Input with DC Terminals, Open Type, 2.7 Amps, 2HP ND, 1HP HD, 600 VAC, 3PH, Frame 3, Filtered, CM Jumper Removed, DB Transistor, Blank (No HIM)
20F11NE3P9AA0NNNNN PowerFlex 753 AC Drive, with Embedded I/O, Air Cooled, AC Input with DC Terminals, Open Type, 3.9 Amps, 3HP ND, 2HP HD, 600 VAC, 3PH, Frame 3, Filtered, CM Jumper Removed, DB Transistor, Blank (No HIM)
20F11NE3P9JA0NNNNN PowerFlex 753 AC Drive, with Embedded I/O, Air Cooled, AC Input with DC Terminals, Open Type, 3.9 Amps, 3HP ND, 2HP HD, 600 VAC, 3PH, Frame 3, Filtered, CM Jumper Installed, DB Transistor, Blank (No HIM)
20F11NE6P1AA0NNNNN PowerFlex 753 AC Drive, with Embedded I/O, Air Cooled, AC Input with DC Terminals, Open Type, 6.1 Amps, 5HP ND, 3HP HD, 600 VAC, 3PH, Frame 3, Filtered, CM Jumper Removed, DB Transistor, Blank (No HIM)
20F11RD011AA0NNNNN PowerFlex 753 AC Drive, with Embedded I/O, Air Cooled, AC Input with DC Terminals, Open Type/Frame 1, 11 Amps, (Fr1 7.5HP ND, 5HP HD/Fr2 7.5HP ND, 7.5HP HD), 480 VAC, 3 PH, Frame 1, Filtered, CM Jumper Removed, DB Transistor, Blank (No HIM)
20F11RD014AA0NNNNN PowerFlex 753 AC Drive, with Embedded I/O, Air Cooled, AC Input with DC Terminals, Open Type/Frame 1, 14 Amps, 10HP ND, 7.5HP HD, 480 VAC, 3 PH, Frame 1, Filtered, CM Jumper Removed, DB Transistor, Blank (No HIM)
20F11RD2P1AA0NNNNN PowerFlex 753 AC Drive, with Embedded I/O, Air Cooled, AC Input with DC Terminals, Open Type/Frame 1, 2.1 Amps, (Fr1 1HP ND, 0.5HP HD/Fr2 1HP ND, 1HP HD), 480 VAC, 3 PH, Frame 1, Filtered, CM Jumper Removed, DB Transistor, Blank (No HIM)
20F11RD3P4AA0NNNNN PowerFlex 753 AC Drive, with Embedded I/O, Air Cooled, AC Input with DC Terminals, Open Type/Frame 1, 3.4 Amps, (Fr1 2HP ND, 1.5HP HD/Fr2 2HP ND, 2HP HD), 480 VAC, 3 PH, Frame 1, Filtered, CM Jumper Removed, DB Transistor, Blank (No HIM)
20F11RD5P0AA0NNNNN PowerFlex 753 AC Drive, with Embedded I/O, Air Cooled, AC Input with DC Terminals, Open Type/Frame 1, 5 Amps, (Fr1 3HP ND, 2HP HD/Fr2 3HP ND, 3HP HD), 480 VAC, 3 PH, Frame 1, Filtered, CM Jumper Removed, DB Transistor, Blank (No HIM)
20F11RD8P0AA0NNNNN PowerFlex 753 AC Drive, with Embedded I/O, Air Cooled, AC Input with DC Terminals, Open Type/Frame 1, 8 Amps, (Fr1 5HP ND, 3HP HD/Fr2 5HP ND, 5HP HD), 480 VAC, 3 PH, Frame 1, Filtered, CM Jumper Removed, DB Transistor, Blank (No HIM)
20F14GD065AA0NNNNN PowerFlex 753 AC Drive, with Embedded I/O, Air Cooled, DC Input with Precharge, Type 12 / IP54, 65 Amps, 50HP ND, 40HP HD, 480 VAC, 3 PH, Frame 5, Filtered, CM Jumper Removed, DB Transistor, Blank (No HIM)
20F14GD077AA0NNNNN PowerFlex 753 AC Drive, with Embedded I/O, Air Cooled, DC Input with Precharge, Type 12 / IP54, 77 Amps, 60HP ND, 50HP HD, 480 VAC, 3 PH, Frame 5, Filtered, CM Jumper Removed, DB Transistor, Blank (No HIM)
20F14GD096AA0NNNNN PowerFlex 753 AC Drive, with Embedded I/O, Air Cooled, DC Input with Precharge, Type 12 / IP54, 96 Amps, 75HP ND, 60HP HD, 480 VAC, 3 PH, Frame 6, Filtered, CM Jumper Removed, DB Transistor, Blank (No HIM)
20F14GD096AN0NNNNN PowerFlex 753 AC Drive, with Embedded I/O, Air Cooled, DC Input with Precharge, Type 12 / IP54, 96 Amps, 75HP ND, 60HP HD, 480 VAC, 3 PH, Frame 6, Filtered, CM Jumper Removed, None, Blank (No HIM)
20F14GD125AA0NNNNN PowerFlex 753 AC Drive, with Embedded I/O, Air Cooled, DC Input with Precharge, Type 12 / IP54, 125 Amps, 100HP ND, 75HP HD, 480 VAC, 3 PH, Frame 6, Filtered, CM Jumper Removed, DB Transistor, Blank (No HIM)
20F14GD125AN0NNNNN PowerFlex 753 AC Drive, with Embedded I/O, Air Cooled, DC Input with Precharge, Type 12 / IP54, 125 Amps, 100HP ND, 75HP HD, 480 VAC, 3 PH, Frame 6, Filtered, CM Jumper Removed, None, Blank (No HIM)
20F14GD156AA0NNNNN PowerFlex 753 AC Drive, with Embedded I/O, Air Cooled, DC Input with Precharge, Type 12 / IP54, 156 Amps, 125HP ND, 100HP HD, 480 VAC, 3 PH, Frame 6, Filtered, CM Jumper Removed, DB Transistor, Blank (No HIM)
20F14GD156AN0NNNNN PowerFlex 753 AC Drive, with Embedded I/O, Air Cooled, DC Input with Precharge, Type 12 / IP54, 156 Amps, 125HP ND, 100HP HD, 480 VAC, 3 PH, Frame 6, Filtered, CM Jumper Removed, None, Blank (No HIM)
20F14GD186AA0NNNNN PowerFlex 753 AC Drive, with Embedded I/O, Air Cooled, DC Input with Precharge, Type 12 / IP54, 186 Amps, 150HP ND, 125HP HD, 480 VAC, 3 PH, Frame 6, Filtered, CM Jumper Removed, DB Transistor, Blank (No HIM)
20F14GD186AN0NNNNN PowerFlex 753 AC Drive, with Embedded I/O, Air Cooled, DC Input with Precharge, Type 12 / IP54, 186 Amps, 150HP ND, 125HP HD, 480 VAC, 3 PH, Frame 6, Filtered, CM Jumper Removed, None, Blank (No HIM)
20F14GD248AA0NNNNN PowerFlex 753 AC Drive, with Embedded I/O, Air Cooled, DC Input with Precharge, Type 12 / IP54, 248 Amps, 200HP ND, 150HP HD, 480 VAC, 3 PH, Frame 7, Filtered, CM Jumper Removed, DB Transistor, Blank (No HIM)
20F14GD248AN0NNNNN PowerFlex 753 AC Drive, with Embedded I/O, Air Cooled, DC Input with Precharge, Type 12 / IP54, 248 Amps, 200HP ND, 150HP HD, 480 VAC, 3 PH, Frame 7, Filtered, CM Jumper Removed, None, Blank (No HIM)
20F14GD302AA0NNNNN PowerFlex 753 AC Drive, with Embedded I/O, Air Cooled, DC Input with Precharge, Type 12 / IP54, 302 Amps, 250HP ND, 200HP HD, 480 VAC, 3 PH, Frame 7, Filtered, CM Jumper Removed, DB Transistor, Blank (No HIM)
20F14GD302AN0NNNNN PowerFlex 753 AC Drive, with Embedded I/O, Air Cooled, DC Input with Precharge, Type 12 / IP54, 302 Amps, 250HP ND, 200HP HD, 480 VAC, 3 PH, Frame 7, Filtered, CM Jumper Removed, None, Blank (No HIM)
20F14GD361AA0NNNNN PowerFlex 753 AC Drive, with Embedded I/O, Air Cooled, DC Input with Precharge, Type 12 / IP54, 361 Amps, 300HP ND, 250HP HD, 480 VAC, 3 PH, Frame 7, Filtered, CM Jumper Removed, DB Transistor, Blank (No HIM)
20F14GD361AN0NNNNN PowerFlex 753 AC Drive, with Embedded I/O, Air Cooled, DC Input with Precharge, Type 12 / IP54, 361 Amps, 300HP ND, 250HP HD, 480 VAC, 3 PH, Frame 7, Filtered, CM Jumper Removed, None, Blank (No HIM)
20F14GD415AA0NNNNN PowerFlex 753 AC Drive, with Embedded I/O, Air Cooled, DC Input with Precharge, Type 12 / IP54, 415 Amps, 350HP ND, 300HP HD, 480 VAC, 3 PH, Frame 7, Filtered, CM Jumper Removed, DB Transistor, Blank (No HIM)
20F14GD415AN0NNNNN PowerFlex 753 AC Drive, with Embedded I/O, Air Cooled, DC Input with Precharge, Type 12 / IP54, 415 Amps, 350HP ND, 300HP HD, 480 VAC, 3 PH, Frame 7, Filtered, CM Jumper Removed, None, Blank (No HIM)
20F14NE041AA0NNNNN PowerFlex 753 AC Drive, with Embedded I/O, Air Cooled, DC Input with Precharge, Open Type, 41 Amps, 40HP ND, 30HP HD, 600 VAC, 3PH, Frame 5, Filtered, CM Jumper Removed, DB Transistor, Blank (No HIM)
20F14NE125AN0NNNNN PowerFlex 753 AC Drive, with Embedded I/O, Air Cooled, DC Input with Precharge, Open Type, 125 Amps,125HP ND, 100HP HD, 600 VAC, 3PH, Frame 6, Filtered, CM Jumper Removed, None, Blank (No HIM)
20F14NE242AN0NNNNN PowerFlex 753 AC Drive, with Embedded I/O, Air Cooled, DC Input with Precharge, Open Type, 242 Amps, 250HP ND, 200HP HD, 600 VAC, 3PH, Frame 7, Filtered, CM Jumper Removed, None, Blank (No HIM)
20F1AGD096AA0NNNNN PowerFlex 753 AC Drive, with Embedded I/O, Air Cooled, AC Input with Precharge, no DC Terminals, Type 12 / IP54, 96 Amps, 75HP ND, 60HP HD, 480 VAC, 3 PH, Frame 6, Filtered, CM Jumper Removed, DB Transistor, Blank (No HIM)
20F1AGD096AN0NNNNN PowerFlex 753 AC Drive, with Embedded I/O, Air Cooled, AC Input with Precharge, no DC Terminals, Type 12 / IP54, 96 Amps, 75HP ND, 60HP HD, 480 VAC, 3 PH, Frame 6, Filtered, CM Jumper Removed, None, Blank (No HIM)
20F1AGD125AA0NNNNN PowerFlex 753 AC Drive, with Embedded I/O, Air Cooled, AC Input with Precharge, no DC Terminals, Type 12 / IP54, 125 Amps, 100HP ND, 75HP HD, 480 VAC, 3 PH, Frame 6, Filtered, CM Jumper Removed, DB Transistor, Blank (No HIM)
20F1AGD125AN0NNNNN PowerFlex 753 AC Drive, with Embedded I/O, Air Cooled, AC Input with Precharge, no DC Terminals, Type 12 / IP54, 125 Amps, 100HP ND, 75HP HD, 480 VAC, 3 PH, Frame 6, Filtered, CM Jumper Removed, None, Blank (No HIM)
20F1AGD156AA0NNNNN PowerFlex 753 AC Drive, with Embedded I/O, Air Cooled, AC Input with Precharge, no DC Terminals, Type 12 / IP54, 156 Amps, 125HP ND, 100HP HD, 480 VAC, 3 PH, Frame 6, Filtered, CM Jumper Removed, DB Transistor, Blank (No HIM)
20F1AGD156AN0NNNNN PowerFlex 753 AC Drive, with Embedded I/O, Air Cooled, AC Input with Precharge, no DC Terminals, Type 12 / IP54, 156 Amps, 125HP ND, 100HP HD, 480 VAC, 3 PH, Frame 6, Filtered, CM Jumper Removed, None, Blank (No HIM)
20F1AGD186AA0NNNNN PowerFlex 753 AC Drive, with Embedded I/O, Air Cooled, AC Input with Precharge, no DC Terminals, Type 12 / IP54, 186 Amps, 150HP ND, 125HP HD, 480 VAC, 3 PH, Frame 6, Filtered, CM Jumper Removed, DB Transistor, Blank (No HIM)
20F1AGD186AN0NNNNN PowerFlex 753 AC Drive, with Embedded I/O, Air Cooled, AC Input with Precharge, no DC Terminals, Type 12 / IP54, 186 Amps, 150HP ND, 125HP HD, 480 VAC, 3 PH, Frame 6, Filtered, CM Jumper Removed, None, Blank (No HIM)
20F1AGD248AA0NNNNN PowerFlex 753 AC Drive, with Embedded I/O, Air Cooled, AC Input with Precharge, no DC Terminals, Type 12 / IP54, 248 Amps, 200HP ND, 150HP HD, 480 VAC, 3 PH, Frame 7, Filtered, CM Jumper Removed, DB Transistor, Blank (No HIM)
20F1AGD248AN0NNNNN PowerFlex 753 AC Drive, with Embedded I/O, Air Cooled, AC Input with Precharge, no DC Terminals, Type 12 / IP54, 248 Amps, 200HP ND, 150HP HD, 480 VAC, 3 PH, Frame 7, Filtered, CM Jumper Removed, None, Blank (No HIM)
20F1AGD302AA0NNNNN PowerFlex 753 AC Drive, with Embedded I/O, Air Cooled, AC Input with Precharge, no DC Terminals, Type 12 / IP54, 302 Amps, 250HP ND, 200HP HD, 480 VAC, 3 PH, Frame 7, Filtered, CM Jumper Removed, DB Transistor, Blank (No HIM)
20F1AGD302AN0NNNNN PowerFlex 753 AC Drive, with Embedded I/O, Air Cooled, AC Input with Precharge, no DC Terminals, Type 12 / IP54, 302 Amps, 250HP ND, 200HP HD, 480 VAC, 3 PH, Frame 7, Filtered, CM Jumper Removed, None, Blank (No HIM)
20F1AGD361AA0NNNNN PowerFlex 753 AC Drive, with Embedded I/O, Air Cooled, AC Input with Precharge, no DC Terminals, Type 12 / IP54, 361 Amps, 300HP ND, 250HP HD, 480 VAC, 3 PH, Frame 7, Filtered, CM Jumper Removed, DB Transistor, Blank (No HIM)
20F1AGD361AN0NNNNN PowerFlex 753 AC Drive, with Embedded I/O, Air Cooled, AC Input with Precharge, no DC Terminals, Type 12 / IP54, 361 Amps, 300HP ND, 250HP HD, 480 VAC, 3 PH, Frame 7, Filtered, CM Jumper Removed, None, Blank (No HIM)
20F1AGD415AA0NNNNN PowerFlex 753 AC Drive, with Embedded I/O, Air Cooled, AC Input with Precharge, no DC Terminals, Type 12 / IP54, 415 Amps, 350HP ND, 300HP HD, 480 VAC, 3 PH, Frame 7, Filtered, CM Jumper Removed, DB Transistor, Blank (No HIM)
20F1AGD415AN0NNNNN PowerFlex 753 AC Drive, with Embedded I/O, Air Cooled, AC Input with Precharge, no DC Terminals, Type 12 / IP54, 415 Amps, 350HP ND, 300HP HD, 480 VAC, 3 PH, Frame 7, Filtered, CM Jumper Removed, None, Blank (No HIM)
20F1AGE077AN0NNNNN PowerFlex 753 AC Drive, with Embedded I/O, Air Cooled, AC Input with Precharge, no DC Terminals, Type 12 / IP54, 77 Amps, 75HP ND, 60HP HD, 600 VAC, 3PH, Frame 6, Filtered, CM Jumper Removed, None, Blank (No HIM)
20F1AGE144AN0NNNNN PowerFlex 753 AC Drive, with Embedded I/O, Air Cooled, AC Input with Precharge, no DC Terminals, Type 12 / IP54, 144 Amps, 150HP ND, 125HP HD, 600 VAC, 3PH, Frame 6, Filtered, CM Jumper Removed, None, Blank (No HIM)
20F1AND125AA0NNNNN PowerFlex 753 AC Drive, with Embedded I/O, Air Cooled, AC Input with Precharge, no DC Terminals, Open Type, 125 Amps, 100HP ND, 75HP HD, 480 VAC, 3 PH, Frame 6, Filtered, CM Jumper Removed, DB Transistor, Blank (No HIM)
20F1AND125AN0NNNNN PowerFlex 753 AC Drive, with Embedded I/O, Air Cooled, AC Input with Precharge, no DC Terminals, Open Type, 125 Amps, 100HP ND, 75HP HD, 480 VAC, 3 PH, Frame 6, Filtered, CM Jumper Removed, None, Blank (No HIM)
20F1AND156AA0NNNNN PowerFlex 753 AC Drive, with Embedded I/O, Air Cooled, AC Input with Precharge, no DC Terminals, Open Type, 156 Amps, 125HP ND, 100HP HD, 480 VAC, 3 PH, Frame 6, Filtered, CM Jumper Removed, DB Transistor, Blank (No HIM)
20F1AND156AN0NNNNN PowerFlex 753 AC Drive, with Embedded I/O, Air Cooled, AC Input with Precharge, no DC Terminals, Open Type, 156 Amps, 125HP ND, 100HP HD, 480 VAC, 3 PH, Frame 6, Filtered, CM Jumper Removed, None, Blank (No HIM)
20F1AND186AA0NNNNN PowerFlex 753 AC Drive, with Embedded I/O, Air Cooled, AC Input with Precharge, no DC Terminals, Open Type, 186 Amps, 150HP ND, 125HP HD, 480 VAC, 3 PH, Frame 6, Filtered, CM Jumper Removed, DB Transistor, Blank (No HIM)
20F1AND186AN0NNNNN PowerFlex 753 AC Drive, with Embedded I/O, Air Cooled, AC Input with Precharge, no DC Terminals, Open Type, 186 Amps, 150HP ND, 125HP HD, 480 VAC, 3 PH, Frame 6, Filtered, CM Jumper Removed, None, Blank (No HIM)
20F1AND248AA0NNNNN PowerFlex 753 AC Drive, with Embedded I/O, Air Cooled, AC Input with Precharge, no DC Terminals, Open Type, 248 Amps, 200HP ND, 150HP HD, 480 VAC, 3 PH, Frame 6, Filtered, CM Jumper Removed, DB Transistor, Blank (No HIM)
20F1AND248AN0NNNNN PowerFlex 753 AC Drive, with Embedded I/O, Air Cooled, AC Input with Precharge, no DC Terminals, Open Type, 248 Amps, 200HP ND, 150HP HD, 480 VAC, 3 PH, Frame 6, Filtered, CM Jumper Removed, None, Blank (No HIM)
20F1AND302AA0NNNNN PowerFlex 753 AC Drive, with Embedded I/O, Air Cooled, AC Input with Precharge, no DC Terminals, Open Type, 302 Amps, 250HP ND, 200HP HD, 480 VAC, 3 PH, Frame 7, Filtered, CM Jumper Removed, DB Transistor, Blank (No HIM)
20F1AND302AN0NNNNN PowerFlex 753 AC Drive, with Embedded I/O, Air Cooled, AC Input with Precharge, no DC Terminals, Open Type, 302 Amps, 250HP ND, 200HP HD, 480 VAC, 3 PH, Frame 7, Filtered, CM Jumper Removed, None, Blank (No HIM)
20F1AND361AN0NNNNN PowerFlex 753 AC Drive, with Embedded I/O, Air Cooled, AC Input with Precharge, no DC Terminals, Open Type, 361 Amps, 300HP ND, 250HP HD, 480 VAC, 3 PH, Frame 7, Filtered, CM Jumper Removed, None, Blank (No HIM)
20F1AND415AN0NNNNN PowerFlex 753 AC Drive, with Embedded I/O, Air Cooled, AC Input with Precharge, no DC Terminals, Open Type, 415 Amps, 350HP ND, 300HP HD, 480 VAC, 3 PH, Frame 7, Filtered, CM Jumper Removed, None, Blank (No HIM)
20F1ANE012AA0NNNNN PowerFlex 753 AC Drive, with Embedded I/O, Air Cooled, AC Input with Precharge, no DC Terminals, Open Type, 12 Amps, 10HP ND, 7.5HP HD, 600 VAC, 3PH, Frame 6, Filtered, CM Jumper Removed, DB Transistor, Blank (No HIM)
20F1ANE018AA0NNNNN PowerFlex 753 AC Drive, with Embedded I/O, Air Cooled, AC Input with Precharge, no DC Terminals, Open Type, 18 Amps, 15HP ND, 10HP HD, 600 VAC, 3PH, Frame 6, Filtered, CM Jumper Removed, DB Transistor, Blank (No HIM)
20F1ANE023AA0NNNNN PowerFlex 753 AC Drive, with Embedded I/O, Air Cooled, AC Input with Precharge, no DC Terminals, Open Type, 23 Amps, 20HP ND, 15HP HD, 600 VAC, 3PH, Frame 6, Filtered, CM Jumper Removed, DB Transistor, Blank (No HIM)
20F1ANE024AA0NNNNN PowerFlex 753 AC Drive, with Embedded I/O, Air Cooled, AC Input with Precharge, no DC Terminals, Open Type, 24 Amps, 20HP ND, 20HP HD, 600 VAC, 3PH, Frame 6, Filtered, CM Jumper Removed, DB Transistor, Blank (No HIM)
20F1ANE028AA0NNNNN PowerFlex 753 AC Drive, with Embedded I/O, Air Cooled, AC Input with Precharge, no DC Terminals, Open Type, 28 Amps, 25HP ND, 20HP HD, 600 VAC, 3PH, Frame 6, Filtered, CM Jumper Removed, DB Transistor, Blank (No HIM)
20F1ANE033AA0NNNNN PowerFlex 753 AC Drive, with Embedded I/O, Air Cooled, AC Input with Precharge, no DC Terminals, Open Type, 33 Amps, 30HP ND, 25HP HD, 600 VAC, 3PH, Frame 6, Filtered, CM Jumper Removed, DB Transistor, Blank (No HIM)
20F1ANE042AA0NNNNN PowerFlex 753 AC Drive, with Embedded I/O, Air Cooled, AC Input with Precharge, no DC Terminals, Open Type, 42 Amps, 40HP ND, 30HP HD, 600 VAC, 3PH, Frame 6, Filtered, CM Jumper Removed, DB Transistor, Blank (No HIM)
20F1ANE042AN0NNNNN PowerFlex 753 AC Drive, with Embedded I/O, Air Cooled, AC Input with Precharge, no DC Terminals, Open Type, 42 Amps, 40HP ND, 30HP HD, 600 VAC, 3PH, Frame 6, Filtered, CM Jumper Removed, None, Blank (No HIM)
20F1ANE063AA0NNNNN PowerFlex 753 AC Drive, with Embedded I/O, Air Cooled, AC Input with Precharge, no DC Terminals, Open Type, 63 Amps, 60HP ND, 50HP HD, 600 VAC, 3PH, Frame 6, Filtered, CM Jumper Removed, DB Transistor, Blank (No HIM)
20F1ANE077AA0NNNNN PowerFlex 753 AC Drive, with Embedded I/O, Air Cooled, AC Input with Precharge, no DC Terminals, Open Type, 77 Amps, 75HP ND, 60HP HD, 600 VAC, 3PH, Frame 6, Filtered, CM Jumper Removed, DB Transistor, Blank (No HIM)
20F1ANE099AA0NNNNN PowerFlex 753 AC Drive, with Embedded I/O, Air Cooled, AC Input with Precharge, no DC Terminals, Open Type, 99 Amps, 100HP ND, 75HP HD, 600 VAC, 3PH, Frame 6, Filtered, CM Jumper Removed, DB Transistor, Blank (No HIM)
20F1ANE125AA0NNNNN PowerFlex 753 AC Drive, with Embedded I/O, Air Cooled, AC Input with Precharge, no DC Terminals, Open Type, 125 Amps,125HP ND, 100HP HD, 600 VAC, 3PH, Frame 6, Filtered, CM Jumper Removed, DB Transistor, Blank (No HIM)
20F1ANE125AN0NNNNN PowerFlex 753 AC Drive, with Embedded I/O, Air Cooled, AC Input with Precharge, no DC Terminals, Open Type, 125 Amps,125HP ND, 100HP HD, 600 VAC, 3PH, Frame 6, Filtered, CM Jumper Removed, None, Blank (No HIM)
20F1ANE144AA0NNNNN PowerFlex 753 AC Drive, with Embedded I/O, Air Cooled, AC Input with Precharge, no DC Terminals, Open Type, 144 Amps, 150HP ND, 125HP HD, 600 VAC, 3PH, Frame 6, Filtered, CM Jumper Removed, DB Transistor, Blank (No HIM)
20F1ANE192AA0NNNNN PowerFlex 753 AC Drive, with Embedded I/O, Air Cooled, AC Input with Precharge, no DC Terminals, Open Type, 192 Amps, 200HP ND, 150HP HD, 600 VAC, 3PH, Frame 7, Filtered, CM Jumper Removed, DB Transistor, Blank (No HIM)
20F1ANE242AA0NNNNN PowerFlex 753 AC Drive, with Embedded I/O, Air Cooled, AC Input with Precharge, no DC Terminals, Open Type, 242 Amps, 250HP ND, 200HP HD, 600 VAC, 3PH, Frame 7, Filtered, CM Jumper Removed, DB Transistor, Blank (No HIM)
20F1ANE242AN0NNNNN PowerFlex 753 AC Drive, with Embedded I/O, Air Cooled, AC Input with Precharge, no DC Terminals, Open Type, 242 Amps, 250HP ND, 200HP HD, 600 VAC, 3PH, Frame 7, Filtered, CM Jumper Removed, None, Blank (No HIM)
20F1ANE242JN0NNNNN PowerFlex 753 AC Drive, with Embedded I/O, Air Cooled, AC Input with Precharge, no DC Terminals, Open Type, 242 Amps, 250HP ND, 200HP HD, 600 VAC, 3PH, Frame 7, Filtered, CM Jumper Installed, None, Blank (No HIM)
20F1ANE289AA0NNNNN PowerFlex 753 AC Drive, with Embedded I/O, Air Cooled, AC Input with Precharge, no DC Terminals, Open Type, 289 Amps, 300HP ND, 250HP HD, 600 VAC, 3PH, Frame 7, Filtered, CM Jumper Removed, DB Transistor, Blank (No HIM)
Software

  • Premier integration of Studio 5000 Logix Designer and PowerFlex® Drives
    • Reduces drive system development time by as much as 70%
    • Allows you to configure controller and drive network connections at the same time
    • Allows you to dynamically select drive parameters transmitted as network I/O
    • Offers continued use of Drive Tools™ SP software via import and export functionality
    • Includes built-in drive diagnostic, fault, alarm, and event information
    • Provides one package to configure your entire Logix system
    • Offers integrated drive profiles that reduce system development time
  • DriveTools SP Software
    • Family of software tools
    • Easy online and offline programming
    • RSLinx® connectivity
    • Includes DriveExecutive™ and DriveObserver™ software
  • Use Connected Components Workbench software with Microsoft Visual Studio® technology to program your PowerFlex® Drives.
Specifications PDF
Configuration & Selection Tools
  • CrossWorks — Convert competitive catalog numbers to similar Allen-Bradley® products.
  • Integrated Architecture Builder — Select hardware and generate bills of materials for projects.
  • Integrated Architecture Tools — Tools to help you plan and configure an Integrated Architecture™ system.
  • ProposalWorks — Build complete quotes and proposals.

Product manuals

# File Description Date added File size Downloads
1 pdf PowerFlex 750-Series Technical Data PowerFlex 750-Series Technical Data
09/27/2017 11:23 22 MB 117
2 pdf PowerFlex 750-Series Quick Start Manual PowerFlex 750-Series Quick Start Manual
09/27/2017 11:24 22 MB 105
3 pdf PowerFlex 750-Series AC Drives Programming Manual PowerFlex 750-Series AC Drives Programming Manual
09/27/2017 11:26 39 MB 100
4 pdf PowerFlex 750-Series AC Drives Brochure PowerFlex 750-Series AC Drives Brochure
09/27/2017 11:27 3 MB 136
5 pdf PowerFlex 750-Series Safe Torque Off User Manual PowerFlex 750-Series Safe Torque Off User Manual
09/27/2017 11:27 5 MB 207
6 pdf PowerFlex 750-Series Speed Monitoring Safety Reference Manual PowerFlex 750-Series Speed Monitoring Safety Reference Manual
09/27/2017 11:27 7 MB 151
7 pdf PowerFlex 750-Series AC Drives Reference Manual PowerFlex 750-Series AC Drives Reference Manual
09/27/2017 11:29 25 MB 97
