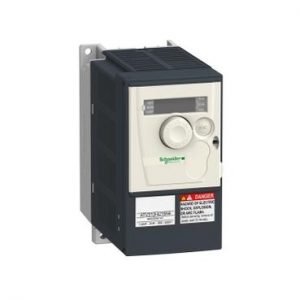

SCHNEIDER ATV312 Series ac inverter
ALTIVAR 312 VARIABLE SPEED DRIVES

The Altivar 312 drive is a frequency inverter for 200…600 V three-phase asynchronous motors from 0.18 to 15 kW.
The Altivar 312 drive is robust, compact and easy to install. Its integrated functions are particularly suitable for the requirements of applications involving simple industrial machines.
By taking account of constraints on product setup and use right from the design stage, we are able to offer a reliable, cost-effective solution to manufacturers of simple machines and installers.
With its various communication cards that are available as options, the Altivar 312 drive integrates perfectly in the main control system architectures.

ALTIVAR 312 SCHNEIDER VARIABLE SPEED DRIVES

Applications

The Altivar 312 drive incorporates functions that are suitable for the most common applications, including:
.Material handling (small conveyors, hoists, etc.)
.Packing and packaging machines (small bagging machines, labelling machines, etc.)
.Special machines (mixers, kneaders, textile machines, etc.)
.Pumps, compressors, fans

Time and cost savings
For the equipment installer and the cable technician:

  • A single, standard tool
  • Less wiring
  • Local controls on the front panel
  • Side-by-side mounting capability

For the programmer:

  • Rapid programming in just a few clicks using the navigation button

For the user:

  • Remote graphic display terminal for remote configuration
  • Multi Loader for storing configurations and loading them quickly
  • Simple Loader for duplicating and loading a configuration



Extremely user-friendly yet packed with advanced communication features!

The Altivar 31 range is replaced by the Altivar 312 range.

Ease of communication:

  • Modbus and CANopen integrated as standard
  • CANopen Daisy Chain, DeviceNet, PROFIBUS DP
  • Ethernet/Modbus and Fipio/Modbus gateways

Simplified user interface:

  • Configuration via mobile phone (Bluetooth®)
  • Intuitive navigation
  • Local controls on the front panel
  • Numerous application-specific functions
  • Auto-tuning for optimum performance
  • Integrated EMC filter
  • Rugged for use in all environments
  • A wide choice of voltage ranges

Altivar 312 Presentation

Time and cost savings

For the equipment installer and the cable technician:

  • A single, standard tool
  • Less wiring
  • Local controls on the front panel
  • Side-by-side mounting capability



For the programmer:

  • Rapid programming in just a few clicks using the navigation button

For the user:

  • Remote graphic display terminal for remote configuration
  • Multi Loader for storing configurations and loading them quickly
  • Simple Loader for duplicating and loading a configuration
  • SoMove software for configuring on PC and transferring the configuration via Bluetooth® or using a cable
  • SoMove Mobile software for modifying or sending a configuration remotely via mobile phone

Increased productivity
Energy saving:

  • Design and installation cost savings provided by the SoMove software workshop
  • Auto-tuning: Shorter setup time and optimum performance levels
  • Total compatibility with the Altivar 31 in terms of both hardware and software, providing extended product replacement options

Compact size:

  • Enclosures can be smaller (integrated EMC depending on the model and side-by-side mounting option without derating)

Standards and certifications:

  • EC/EN 61800-5-1, IEC/EN 61800-3 (environments 1 and 2, categories C1 to C3), CE, UL, CSA, C-Tick, NOM, GOST
