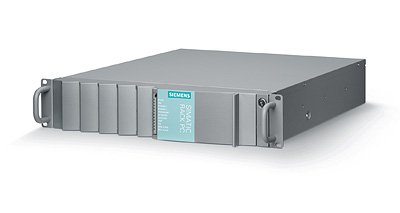

Siemens IPC 647C 647D SIMATIC IPC647D Industrial PC SIMATIC IPC647C

SIMATIC IPC647D  is a rugged and extremely compact industrial PC in 19″ design (2U). It is particularly suitable for space-saving implementation of fast computing and visualization tasks, e.g. image and data processing or industrial server applications. With a height of only 2 units and a small mounting depth, it optimally utilizes the space in 19″ standard control cabinets (from 500 mm).

The SIMATIC IPC647D is a very rugged, high-performance
industrial PC in 19″ rack design (2 U) with excellent industrial
functionality.
It offers:
• Extreme compactness
• Extreme ruggedness
• 4th generation Intel® Core™ i technology

The SIMATIC IPC647D is a very rugged, high-performance
industrial PC in 19″ rack design (2 U) with excellent industrial
functionality.
It offers:
• Extreme compactness
• Extreme ruggedness
• 4th generation Intel® Core™ i technology

Siemens IPC 647C 647D

Design19” rack, 2 HU • Rugged panel-mount housing, all metal • Prepared for mounting telescopic rails • Can be mounted horizontally • Lockable front cover as access protection
Enclosure• Dust protection by means of overpressure ventilation using bearing seated front fan through filter • Enclosure cover fastened with a single screw • Front fan can be exchanged without tools • Card retainer for reliable operation of PC modules under vibration and shock conditions
Drive bays• 2 × removable drive bays, slimline or • 2 × 3.5″ drive in vibration-damped drive cage and • 1 × slimline DVD format
Slots for expansion cards (long)Max. 4 slots, equipment PCI/PCIe, depending on configuration
Graphics• CRT (via DVI-I VGA adapter): Up to 2560×1600 at 120 Hz / 32-bit color depth • LCD via DVI-D: Up to 2048 x 1152 at 60 Hz, 32-bit color depth • LCD via DisplayPort: Up to 4096 x 1152 at 24 Hz, 32-bit color depth
PROFIBUS/MPI12 Mbps (isolated potential, compatible to CP -5622), optional
PROFINET10/100 Mbps (CP 1616 onboard), three RJ45; optional
Ethernet2 x 10/100/1000 Mbps (two RJ45) Wake on LAN, Remote Boot and teaming are supported
USB2 x front panel, 4 x rear panel, 1 x internal; (high current)
SerialCOM1 (V.24), COM2 (V.24) optional, through slot plate adapter
ParallelLPT optional, through slot plate adapter
Monitor• 1 x DVI-I (for DVI-D or VGA using cable adapter) • 2 × DisplayPort • 2 × DVI-D/VGA with Dual Head graphics card (optional, via cable adapter)



  • Maximum performance and extremely fast system response:
    – Intel® processors (Intel Xeon, Core i5 and i3)
    – Powerful onboard HD graphics integrated into the CPU
    – UP to 32 GByte main memory
  • Extremely high system availability and data security due to
    – RAID 1 system with onboard or hardware RAID Controller in hot swap frame
    – Solid-state drive (SSD) with 240 GB (SATA, 2.5″)
    – ECC-RAM, work memory with error correction
    – Redundant power supply (hot-swap)
  • Remote access over Intel AMT 9.0
  • Optional PROFIBUS or PROFINET interface with three ports for low-cost connection of distributed field devices or to interfaces with SIMATIC S7

The SIMATIC IPC offers system integrators, cabinet designers, system engineers and
machine designers a 19″ rack PC platform for high-performance applications and IT
applications on the control and cell level for:
● Process and visualization applications
● Industrial image processing
● Quality assurance and monitoring tasks
● Measurement, control and rule-based tasks
● Data acquisition and management
The SIMATIC IPC has CE certification for use in the industrial sector as well as in residential
and commercial areas and small businesses. In addition to the industrial applications,
therefore, it can also be used in building automation or in public facilities.

• All-metal 19″ enclosure (2 U) for high mechanical robustness (vibration/shock) and high EMC
• For mounting in a horizontal and prepared for the mounting of telescopic rails
• Lockable front door for authorized access (access protection) to swap media at the front, operating controls (Reset, Power), USB interface, front fan and dust filter
• Card retainer for PC modules for safe operation and transport
(vibration, shock)
• Opening of the enclosure cover with only one screw and replacement of PC components (e.g. PC cards or HDD) with a single tool
• Front fan and dust filter can be replaced without tools
• Dust protection thanks to overpressure ventilation using ball
bearing mounted front fan via filter; 3 slots for installation of
drives

The SIMATIC IPC647D is a rugged and extremely compact industrial PC in 19″ design (2U). It is particularly suitable for space-saving implementation of fast computing and visualization tasks, e.g. image and data processing or industrial server applications.
