SIEMENS RACK PC IPV847C | SIMATIC IPC847C ORDERING DATA

SIMATIC IPC847C

The new 19-inch Rack PC SIMATIC IPC847C is equipped with the latest 2010 Intel Core processor technology (Intel Core i). The high computing power and the PCI Express technology make the IPC847C the perfect platform for high-performance applications – as can be found in the measurement technology of test stands or in the industrial machine vision. Furthermore, the SIMATIC IPC847C provides maximum system availability, expandability and compactness in a 19″ IPC form factor:

  • Optimal storage space utilization and data integrity with RAID5
  • Optional redundant power supply (AC)
  • Extensive diagnostic and monitoring capabilities
  • Universal use for industrial workstation and server applications
  • Large number of integrated interfaces and expansion slots
  • Lower installation depth for the mounting in space-saving control cabinets that are only 500 mm deep
Share on facebook
Facebook
Share on google
Google+
Share on twitter
Twitter
Share on linkedin
LinkedIn
Maximum industrial compatibility and compactness for 24-hour use in an industrial environment
  • Maximum processor performance (in maximum configuration) without loss of power (throttling) at ambient temperatures of up to 50 °C
  • Distinct product design with new front design and fully-coated, dirt-resistant surfaces
  • All-metal housing with high EMC for use in industrial environment
  • Suitable for installing in space-saving control cabinets only 500 mm deep
  • Dust protection thanks to overpressure ventilation concept with fan on the front and dust filter
  • Special hard disk holders and card retainers for protection against vibration and shock
High productivity thanks to faster data processing
  • Intel® Core™ processors – with Turbo-Boost, Hyper-Threading and Virtualization technology
  • Memory and graphics controller integrated into processor for extraordinary memory and graphics performance
  • Maximum performance (e.g. Intel QM57 Express Chipset, DDR3 memory with the support of Dual Channel technology)
  • High data transfer rates (e.g. with hardware RAID controller and SAS hard disks, dual Gigabit Ethernet)
Minimization of downtimes thanks to high system availability
  • Secure 24-hour operation (high MTBF, variable-speed fan)
  • Efficient self-diagnostics (status display for Ethernet and PROFIBUS; alarm indication for fan, temperature, watchdog and hard disks in RAID1/5 configurations, SIMATIC IPC DiagMonitor)
  • High degree of data security due to RAID1 (mirror disks system) or RAID5 (striping with parity)
  • High-performance hardware Raid controller (PCIe x8) with Zero-Maintenance Cache Protection module (optional)
  • Rapid identification and replacement of the hard disk in the event of a fault (e.g. front LEDs for HDD alarm in RAID configurations)
  • “Hot swap” removable frame in RAID configurations (replacement of hard disk during operation)
  • Solid-state drive (SSD) in single level cell (SLC) architecture and ECC memory (optional)
  • Redundant power supply with “hot swap” functionality (replacement of power supply module during operation)
  • Securing of the replaceable components at the front (e.g. USB software dongle) against unauthorized access by means of a lockable door
  • Locked fan cover: Filter mat and front fan can only be replaced when front door is open
  • The enclosure cover can only be opened if the front door is open
  • Service-friendly device setup (modifications, service)
Cost reductions through high investment security
  • Platform with long-term stability and embedded Intel components
  • Availability of 3 to 6 years, guaranteed availability of spare parts for 5 years
  • System-tested with SIMATIC components
  • Certification for worldwide marketing (cULus)
  • Support for legacy interfaces (PS/2, COM, LPT)
  • Installation compatible for many device generations
  • Worldwide service and support
Reduced costs due to time savings for commissioning, operation and servicing
  • High degree of flexibility and expandability thanks to integrated interfaces and up to 11 slots (PCI and PCI-Express)
  • Preinstalled and activated operating system
  • AMT (Intel Active Management Technology) functionality for remote access to IPC (remote maintenance)
  • Fast restoration of the delivery status of the HDD thanks to restore DVD
  • Low noise output thanks to controlled fan
  • Universal implementation as an industrial workstation or server
  • PROFIBUS or PROFINET interface and RAID1/5 controller onboard (optional)
  • 2 x LAN 10/100/1000 Mbit/s connections (Gbit LAN with teaming capability)
  • Flexible applications in many different positions with telescopic rails or as tower industrial PC
  • Remote maintenance with iAMT technology and SIMATIC IPC Remote Manager software
Basic design
  • All-metal 19″ enclosure (4 U) for high mechanical resilience (vibration/shock) and high EMC
  • Prepared for mounting of telescopic rails
  • Horizontal and vertical installation is possible, can be used as an industrial tower PC by using the appropriate kit.
  • Lockable front door for authorized access (access protection) to swap media at the front, operating controls (Reset, Power), USB interface, front fan and dust filter
  • Card retainer for PC modules for safe operation and transport (vibration, shock)
  • Opening of the enclosure cover with only one screw and replacement of PC components (e.g. PC cards or HDD) with a single tool
  • Front fan and dust filter can be replaced without tools
  • Dust protection by means of overpressure ventilation using bearing seated front fan through filter
  • 6 slots for installing drives
    • Front: 1 x 3.5″; 3 x 5.25″ or 1 x 3.5″; 1 x 5.25″; 3 x HDD removable drive bay (low profile)
    • Internal: 2 x 3.5″ (in the optional vibration-damping drive bracket or in the fixed hard disk support)
  • Graphics on-board, Intel GMA HD integrated in the processor, up to 2048 x 1536 pixels, 60 Hz, 16-bit colors
  • Interfaces:
    • 2 x LAN 10/100/1000 Mbit/s Ethernet interface (RJ45, team capability)
    • 4 x USB 2.0 at the rear, 2 x USB 2.0 at the front (one of which can be used when door is closed), 1 x internal, e.g. for software dongle
    • 2 x PS/2, COM1, COM2, LPT1, DVI-I
    • Audio: Line Out, Mic
  • 11 spare slots for expansions (all long):
    • 7 x PCI
    • 1 x PCI Express x16
    • 3 x PCI Express x4
  • Power supply: 100 … 240 V AC, 50 … 60 Hz
Design versions
  • Processor:
    • Intel Core i7-610E (2C/4T, 2.53 GHz, 4 MB cache, Turbo Boost, VT-d, iAMT, EM64T)
    • Intel Core i5-520E (2C/4T, 2.4 GHz, 3 MB cache, Turbo Boost, VT-d, iAMT, EM64T)
    • Intel Core i3-330E (2C/4T, 2.13 GHz, 3 MB cache, EM64T)
  • Main memory configuration
    • from 1 GB up to 8 GB, DDR3 1066 SDRAM (configured as dual channel for the highest performance from 2 GB upwards)
    • ECC memory
      Memory information:
      In order to use a memory with more than 4 GB, a 64-bit operating system is required. In configurations with at least 4 GB, the visible memory can be reduced to about 3.5 GB or less (with 32-bit operating systems) and in configurations with 8 GB, the visible memory can be reduced to about 7.5 GB or less.
  • Fieldbus onboard:
    • PROFIBUS/MPI, CP5611-compatible or PROFINET, 3 x RJ45, CP1616-compatible
  • Bus module with only 8 spare slots (7 x PCI, 1 x PCI-Express x16)
  • Graphics expansion:
    • PCI-Express graphics card x16, (dual head with display port: 2 x VGA or 2 x DVI-D via adapter), 256 MB, up to 2048 x 1536 pixels, 75 Hz, 32-bit colors
    • Adapter cable (DVI-I to VGA) for the onboard graphics interface (1 x VGA) for connecting an analog monitor
  • Drives:
  • SATA/SAS 3.5″ hard disks with NCQ technology or SATA 2.5″ solid-state drive:
    • Mounted internally on the permanent hard disk support:
    • 1x 250 GB HDD
    • 1x 50 GB SSD (SLC)
    • Mounted internally in vibration/shock-absorbing hard-disk support or at the front in a removable drive bay (hot-swap in RAID1/5 configuration):
    • 1 x 250 GB
    • 1 x or 2 x 500 GB
    • RAID1, 500 GB (2 x 500 GB, mirror disks), RAID controller onboard
    • RAID5, 1 TB (3 x 500 GB, striping with parity), RAID controller onboard
    • 1x 50 GB SSD (SLC) at front in removable drive bay
    • Installation at the front in removable drive bay (hot swap):
    • RAID1 1.0 TB (2 x 1 TB HDD SAS, mirror disks), PCIe x8 RAID controller in PCIe x16 slot incl. zero-maintenance cache protection module
    • RAID5 1.8 TB (3 x 1 TB HDD SAS, striping with parity), PCIe x8 RAID controller in PCIe x16 slot incl. zero-maintenance cache protection module
  • Optical drives: DVD-ROM or DVD±/-R/RW
  • Power supply:
    • 100 … 240 V AC, 50 … 60 Hz redundant
    • Country-specific power cable
  • Preinstalled and activated operating systems:
    • Windows XP Professional Multi-Language, 32/64-bit
    • Windows 7 Ultimate Multi-Language, 32-bit
    • Windows Server 2003 R2 Standard Edition incl. 5 Clients Multi-Language, 32-bit
    • Windows Server 2008 Standard Edition incl. 5 Client Multi-Language, 32-bit
    • Windows Server 2008 R2 Standard Edition incl. 5 Clients Multi-Language, 64-bit
  • SIMATIC IPC DiagMonitor 1)
  • SIMATIC IPC Image & Partition Creator 1)

1) Further information can be found under “Expansion components“.

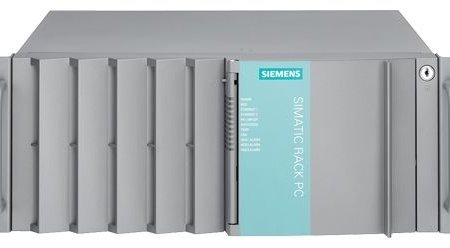

Front view of SIMATIC Rack IPC847C, with open front door

Rear of SIMATIC IPC847C with redundant power supply (optional)

A Tower Kit can be ordered as an accessory for converting the computer into an industrial tower PC.
See “Ordering data for accessories“.



The SIMATIC IPC847C provides mechanical engineers, plant engineers, and control cabinet manufacturers with a high-performance, extremely flexible 19″ rack PC platform for machine-level industrial use:

  • Measuring, open-loop and closed-loop control of process and machine data
  • Visualization of production processes
  • Image processing and editing in the context of quality inspections
  • Data recording and management
  • Server applications

The SIMATIC IPC847C has the CE mark for use in the industrial sector.

The SIMATIC Rack IPCs can be ordered in combination with WinCC flexible, WinCC RT Advanced or WinCC as SIMATIC HMI packages at favorable prices.

Multi Core processor technology

Thanks to the use of two processor cores with hyper-threading, the Core i processors are ideally suited to multi-thread application programs and multitasking. Several demanding applications – such as visualization applications with demanding graphics or programs executing extensive calculations – can be executed at the same time to enhance the response time of the system. Thanks to energy-optimized Multi Core technology and outstanding energy-saving properties, the Intel Core i processors operate without any loss of performance even at increased temperatures up to 50 °C in demanding applications.

The SIMATIC IPC847C is preconfigured for Multi Core technology with Intel Core i processors and Microsoft operating systems, and offers higher performance and better multitasking in the industrial environment.

Multi-display technology

The multi-display architecture with its modern functions for desktop and application management supports working with several screens and therefore considerably enhances productivity. The SIMATIC IPC847C with an optional dual-head graphics card (PCI Express x16) is optimized for industrial multi-display environments. The following screen modes are supported: Native DualView, Span or Big Desktop, Clone.

Connection options: 2 x VGA or 2 x DVI-D

Monitoring functions

Integrated monitoring functions: temperature inside enclosure, fan speed (CPU, power supply and front fan), program execution (watchdog)

Expanded diagnostics/messages via Ethernet, e-mail, text message and for direct transfer to SIMATIC software via OPC (optionally via SIMATIC IPC DiagMonitor):

  • Runtime meter
  • Hard disk status, also for RAID configuration
  • System status (Heart Beat)
  • Automatic logging of all alarms by means of a log file
  • Capability for central monitoring of networked SIMATIC IPC
AMT functionality (Intel Active Management Technology)

This feature allows remote access to the IPC for diagnostics and troubleshooting (service work) even with the operating system shut down:

  • Controlled startup/shutdown of the IPC
  • Access to BIOS settings and BIOS update
  • Measures by means of remote access in the event of a fault, e.g. reboot
  • Software updates from integrated ISO image
RAID controller onboard

RAID1 (mirroring) for automatic data mirroring on two SAS or SATA hard disks, or RAID5 (striping with parity) for optimized utilization of capacity with high degree of fault tolerance on three SAS or SATA hard disks.

Hardware Raid controller (PCIe x8) (optional):

  • Auto-Rebuild when changing from hard disks
  • Fast rebuild to restore safe state again as quickly as possible
  • Higher system performance by offloading the processor during the rebuild
  • Zero-Maintenance Cache Protection: Protection of the data in the controller cache during power failure

Integral interfaces.

  • Ethernet
    The two integrated Gigabit Ethernet interfaces (10/100/1000 Mbit/s) can be used for IT communication and for data exchange with programmable controllers such as SIMATIC S7 (with the “SOFTNET S7” software package).
  • PROFIBUS
    The optional floating PROFIBUS interface (12 Mbit/s) can be used to connect distributed field devices or to interface to the SIMATIC S7 (with the “SOFTNET for PROFIBUS” software packages).
  • PROFINET
    The optional PROFINET interface can be used for connecting distributed field devices or for controlling drives.
  • Further interfaces
    For connecting additional I/O devices, 8 or 11 free slots are available for PC modules as well as seven USB 2.0 (Universal Serial Bus), two serial interfaces, and one parallel interface.

Technical specifications

ORDER NUMBER

6AG4114-1….-….



SIMATIC IPC847C

Supply voltage



Type of supply voltage

100 – 240 V AC

Line frequency


  • ● Rated value 50 Hz

Yes

  • ● Rated value 60 Hz

Yes

Processor



Processor type

Core i7-610E (2.53 GHz 2C/4T, 4 MB Cache, TB, VT-x, VT-d, EM64T); Core i5-520E (2.4 GHz, 2C/4T, 3 MB Cache, TB, VT-x, VT-d, EM64T); Core i3-330E (2.13 GHz, 2C/4T, 3 MB Cache, VT-x, EM64T)

Drives



Hard disk

250 GB or 500 GB SATA HDD, RAID1/RAID5 HDD, 32 GB SATA SSD, installed internally on the drive carrier, in the shock and vibration-damped drive rack, or on the front drive support in the swap frame

Memory



Type of memory

DDR3-SDRAM

Main memory

1 GB to 8 GB, ECC optional

Hardware configuration



Slots


  • ● free slots

7x PCI, 1x PCIe x16 or 7 x PCI, 3x PCIe x4, 1x PCIe x16; all modules up to 312 mm in length are supported

Interfaces



Interfaces/bus type

2x COM, 1x LPT, 1x DVI-I, 2x PS/2, audio (Microphone In, Line Out), 7x USB 2.0, 2x Gigabit Ethernet, PROFIBUS or PROFINET optional

PROFIBUS/MPI

onboard, isolated, max. 12 Mbit/s, CP 5611-compatible

USB port

2x USB 2.0 on front, 4x USB 2.0 on rear, 1x USB 2.0 internal

Connection for keyboard/mouse

2x PS/2

serial interface

COM1: 1 x V.24 (RS232), COM2: 1 x V.24 (RS232C)

parallel interface

LPT1 (EPP/ECP)

Multimedia


  • ● Audio In/Out

Yes

Special interfaces


  • ● Microphone In

Yes

Video interfaces


  • ● Graphics interface

1 x DVI-I or 1 x VGA (via adapter) optional

Industrial Ethernet


  • ● Industrial Ethernet interface

2 x Ethernet (RJ45)

  • — 100 Mbps

Yes

  • — 1000 Mbps

Yes

Integrated Functions



Monitoring functions


  • ● Temperature

Yes

  • ● Watchdog

Yes

  • ● Status LEDs

POWER; HARD DISK; ETHERNET 1; ETHERNET 2; PN Ι MPI/DP; WATCHDOG; TEMP; HDD1 ALARM; HDD2 ALARM; HDD3 ALARM

Ambient conditions



Ambient temperature during operation


  • ● Ambient temperature during operation

+ 5 °C to + 35 °C without restrictions; + 5 °C to + 45 °C no burner operation; + 5 °C to + 50 °C no ODD operation; power dissipation of the expansion modules in total less than 30 W

  • ● min.

5 °C

  • ● max.

50 °C

Relative humidity


  • ● Relative humidity

Tested according to IEC 60068-2-78, IEC 60068-2-30: 5% to 80% at 25 °C (no condensation)

Vibrations


  • ● Vibration load in operation

Tested according to IEC 60068-2-6: 10 cycles, 10 Hz to 58 Hz: 0.0375 mm, 58 Hz to 500 Hz: 4.9 m/s² (0.5 g)

Shock testing


  • ● Shock load during operation

Tested according to IEC 60068-2-27, IEC 60068-2-29: half-sine: 50 m/s² (5 g), 30 ms, 100 shocks per axis

Operating systems



Operating system

Windows XP Professional, 32-bit, MUI; Windows 7 Ultimate, 32-bit, MUI; Windows Server 2008 Standard Edition incl. 5 Clients, 32-bit, MUI

Additional info on operating system

Multi-Language User Interface (MUI): 5 languages (English, German, French, Spanish, Italian)

Software



SIMATIC Software

Optional in a package with SIMATIC WinCC, WinCC flexible, or WinAC RTX

All dimensions in mm. For mounting cut-out see technical specifications.

Technical data of the telescopic rails

Carrying capacity per pair, min.

30 kg

Full extension length, min.

470 mm

Rail thickness, max.

9.7 mm

Fixing screws

M5 x 6 mm

SIMATIC IPC847C ORDERING DATA

SIMATIC IPC847C (RACK PC, 19″, 4U); INTERFACES:2 X GBIT LAN (RJ45); 1 X DVI-I; AUDIO; 2 X COM; 1 X LPT; 2 X PS/2; 4 X USB 2.0 BACKSIDE, 2 X USB 2.0 FRONTSIDE; TEMPERATURE AND FAN CONTROL; WATCHDOG; BOARD RETAINER

SIMATIC IPC847C (RACK PC, 19″, 4U); INTERFACES:2 X GBIT LAN (RJ45); 1 X DVI-I; AUDIO; 2 X COM; 1 X LPT; 2 X PS/2; 4 X USB 2.0 BACKSIDE, 2 X USB 2.0 FRONTSIDE; TEMPERATURE AND FAN CONTROL; WATCHDOG; BOARD RETAINER CORE I3-330E (2C/4T, 2.13 GHZ, 3MB CACHE, VT-X, EM64-T); MOTHERBOARD W/O FIELDBUS; 250 GB HDD SATA; 0,3 G VIBRATION, 3 G SHOCK, INTERNALLY MOUNTED; 2 GB DDR3 SDRAM (1 X 2GB), SINGLE CHANNEL; DVD +/- RW; BOARD WITH 8 SLOTS: 7 X PCI, 1 X PCIE X16; WITHOUT HW EXTENSIONS; WINDOWS XP PROFESSIONAL, 32BIT, MUI (EN, GER, FR, IT, SP), SP3, WITHOUT SOFTWARE 110/230 INDUSTRIAL POWER SUPPLY WITH NAMUR; PS CORD USA

SIMATIC IPC847C (RACK PC, 19″, 4U); INTERFACES:2 X GBIT LAN (RJ45); 1 X DVI-I; AUDIO; 2 X COM; 1 X LPT; 2 X PS/2; 4 X USB 2.0 BACKSIDE, 2 X USB 2.0 FRONTSIDE; TEMPERATURE AND FAN CONTROL; WATCHDOG; BOARD RETAINER CORE I3-330E (2C/4T, 2.13 GHZ, 3MB CACHE, VT-X, EM64-T); MOTHERBOARD WITH PROFIBUS/MPI; 250 GB HDD SATA; 0,3 G VIBRATION, 3 G SHOCK, INTERNALLY MOUNTED; 1 GB DDR3 SDRAM (1 X 1GB), SINGLE CHANNEL; WITHOUT EXCHANGEABLE MEDIA; BOARD WITH 8 SLOTS: 7 X PCI, 1 X PCIE X16; WITHOUT HW EXTENSIONS; WINDOWS XP PROFESSIONAL, 32BIT, MUI (EN, GER, FR, IT, SP), SP3, WITHOUT SOFTWARE 110/230 INDUSTRIAL POWER SUPPLY WITH NAMUR; PS CORD USA

SIMATIC IPC847C (RACK PC, 19″, 4U); INTERFACES:2 X GBIT LAN (RJ45); 1 X DVI-I; AUDIO; 2 X COM; 1 X LPT; 2 X PS/2; 4 X USB 2.0 BACKSIDE, 2 X USB 2.0 FRONTSIDE; TEMPERATURE AND FAN CONTROL; WATCHDOG; BOARD RETAINER CORE I5-520E (2C/4T, 2.4 GHZ, 3MB CACHE,TB,VT-X,VT-D, EM64-T, AMT); MOTHERBOARD W/O FIELDBUS; RAID1 500GB (2X 500GB HDD SATA, REMOVABLE DISK, HOT-SWAP; FRONTSIDE MOUNTED; 2 GB DDR3 SDRAM (1 X 2GB), SINGLE CHANNEL; DVD-ROM; BOARD WITH 8 SLOTS: 7 X PCI, 1 X PCIE X16; WITHOUT HW EXTENSIONS; WINDOWS XP PROFESSIONAL, 32BIT, MUI (EN, GER, FR, IT, SP), SP3, WITHOUT SOFTWARE 110/230 INDUSTRIAL POWER SUPPLY WITH NAMUR; PS CORD USA

SIMATIC IPC847C (RACK PC, 19″, 4U); INTERFACES:2 X GBIT LAN (RJ45); 1 X DVI-I; AUDIO; 2 X COM; 1 X LPT; 2 X PS/2; 4 X USB 2.0 BACKSIDE, 2 X USB 2.0 FRONTSIDE; TEMPERATURE AND FAN CONTROL; WATCHDOG; BOARD RETAINER CORE I5-520E (2C/4T, 2.4 GHZ, 3MB CACHE,TB,VT-X,VT-D, EM64-T, AMT); MOTHERBOARD W/O FIELDBUS; RAID1 500GB (2X 500GB HDD SATA, REMOVABLE DISK, HOT-SWAP; FRONTSIDE MOUNTED; 4 GB DDR3 SDRAM (2 X 2GB), DUAL CHANNEL; DVD +/- RW; BOARD WITH 8 SLOTS: 7 X PCI, 1 X PCIE X16 OCCUPIED; + GRAPHICS CARD PCIE X16, 2 X DP (2 X DVI VIA 2 X DP-DVI-ADAPTER); WINDOWS XP PROFESSIONAL, 32BIT, MUI (EN, GER, FR, IT, SP), SP3, WITHOUT SOFTWARE 110/230 INDUSTRIAL POWER SUPPLY WITH NAMUR; PS CORD USA

SIMATIC IPC847C (RACK PC, 19″, 4U); INTERFACES:2 X GBIT LAN (RJ45); 1 X DVI-I; AUDIO; 2 X COM; 1 X LPT; 2 X PS/2; 4 X USB 2.0 BACKSIDE, 2 X USB 2.0 FRONTSIDE; TEMPERATURE AND FAN CONTROL; WATCHDOG; BOARD RETAINER CORE I7-610E (2C/4T, 2.53 GHZ, 4MB CACHE, TB, VT-X,VT-D, EM64-T, AMT); MOTHERBOARD W/O FIELDBUS; RAID5 1 TB (3 X 500GB HDD SATA, REMOVABLE DISK, HOT-SWAP; FRONTSIDE MOUNTED; 4 GB DDR3 SDRAM (2 X 2GB), DUAL CHANNEL; DVD +/- RW; BOARD WITH 8 SLOTS: 7 X PCI, 1 X PCIE X16; WITHOUT HW EXTENSIONS; WINDOWS 7 ULTIMATE, 32BIT, MUI (EN, GER, FR, IT, SP), SP1 INCLUDED; SIMATIC PC DIAGMONITOR V4.4 & IMAGE&PARTITION CREATOR V3.3 INCLUDED; 110/230 INDUSTRIAL POWER SUPPLY WITH NAMUR; PS CORD USA

SIMATIC IPC847C (RACK PC, 19″, 4U); INTERFACES:2 X GBIT LAN (RJ45); 1 X DVI-I; AUDIO; 2 X COM; 1 X LPT; 2 X PS/2; 4 X USB 2.0 BACKSIDE, 2 X USB 2.0 FRONTSIDE; TEMPERATURE AND FAN CONTROL; WATCHDOG; BOARD RETAINER CORE I7-610E (2C/4T, 2.53 GHZ, 4MB CACHE, TB, VT-X,VT-D, EM64-T, AMT); MOTHERBOARD W/O FIELDBUS; RAID5 1 TB (3 X 500GB HDD SATA, REMOVABLE DISK, HOT-SWAP; FRONTSIDE MOUNTED; 8 GB DDR3 SDRAM (2 X 4GB), DUAL CHANNEL; DVD +/- RW; BOARD WITH 8 SLOTS: 7 X PCI, 1 X PCIE X16; WITHOUT HW EXTENSIONS; WINDOWS XP PROFESSIONAL, 32BIT, MUI (EN, GER, FR, IT, SP), SP3, SIMATIC PC DIAGMONITOR V4.4 & IMAGE&PARTITION CREATOR V3.3 INCLUDED; 110/230 INDUSTRIAL POWER SUPPLY WITH NAMUR; PS CORD USA

SIMATIC IPC847C (RACK PC, 19″, 4U); INTERFACES:2 X GBIT LAN (RJ45); 1 X DVI-I; AUDIO; 2 X COM; 1 X LPT; 2 X PS/2; 4 X USB 2.0 BACKSIDE, 2 X USB 2.0 FRONTSIDE; TEMPERATURE AND FAN CONTROL; WATCHDOG; BOARD RETAINER CORE I7-610E (2C/4T, 2.53 GHZ, 4MB CACHE, TB, VT-X,VT-D, EM64-T, AMT); MOTHERBOARD W/O FIELDBUS; RAID5 1 TB (3 X 500GB HDD SATA, REMOVABLE DISK, HOT-SWAP; FRONTSIDE MOUNTED; 8 GB DDR3 SDRAM, ECC (2 X 4GB), DUAL CHANNEL; DVD +/- RW; BOARD WITH 8 SLOTS: 7 X PCI, 1 X PCIE X16; WITHOUT HW EXTENSIONS; WINDOWS SERVER 2008 STANDARD EDITION INCL. 5 CLIENT, 32BIT, MUI (EN, GE, FR, IT, SP), SP2; SIMATIC PC DIAGMONITOR V4.4 & IMAGE&PARTITION CREATOR V3.3 INCLUDED; 2 X 110/230 IREDUNDANT POWER SUPPLY W/O POWER CORD

Best price for Siemens IPC847C

As you know, Siemens IPC847C is a discontinued product, we are still the supplier, and we save the cost of upgrading and updating the system for customers. Contact us to get a best price.

Product manuals

#FileDescriptionDate addedFile sizeDownloads
1 pdf ipc847c_getting_started_en-US_en IPC847C
09/15/2019 19:144 MB24
2 pdf ipc847c_operating_instructions_en-US_en-US09/15/2019 19:1417 MB14
