Yokogawa multi-sensing transmitter EJX930A EJX910A

A multi-sensing transmitter is used to supply three different process readings to an external device. This could include a flow computer or RTU.

Yokogawa’s Multivariable transmitter includes an option for RS485 Modbus communication to allow easy integration with other devices.

EJX930A multi-sensing

EJX930A multi-sensing transmitter

Designed specifically for high static pressure applications, this transmitter precisely measures differential pressure, static pressure, and process temperature; then uses these values in a high-perfomance on-board flow computer to deliver fully compensated Mass Flow.

EJX910A multi-sensing

EJX910A multi-sensing transmitter

This transmitter precisely measures differential pressure, static pressure, and process temperature; then uses these values in a high-perfomance on-board flow computer to deliver fully compensated Mass Flow.

EJX910A multi-sensing transmitter Introduction

Level transmitter configuration can be very time consuming. Calculations required to determine proper range values for traditional transmitters can become complex due to the physical layout of an application.

With maintenance shops getting smaller, finding equipment that allows us to do more with fens becomes a priority. DPharp transmitters with advanced software functionality can eliminate these complex calculations.

EJX910A multi-sensing transmitter Application

Using typical smart or conventional products, all the following must be considered:

The specific gravity of the processSGP
Precise location of 0% and 100%

Specific Gravity of the capillary fill fluid
(or sealing fluid used in impulse piping)

SGFF
Exact orientation oi the transmitter to the vesselH2
Vertical distance between the process conn.H1

Depending on the application, the vessel may be open (referencing atmosphere) or closed (under a blanket pressure).

Elevation is typically used when the vessel is closed. To reference the blanket pressure, a low side remote seal may be used (or a wet leg). The capillary on remote seal creates a negative force on the transmitter equal to the vertical height times the specific gravity of the fill fluid.

Elevation = (H1 + H2) x SGFF

Suppression is a positive pressure created on the high-pressure side of the transmitter typically due to the transmitter being positioned below the 0% process connection. Suppression is present in both open arid closed vessels. Suppression is equal to the vertical distance between the 0% process connection and the transmitter times the Specific Gravity of the fill livid.

Suppression = H2 x SGFF

Span is the vertical distance between the process connections times the process medium’s Specific Gravity.

Span = H1 x SGP

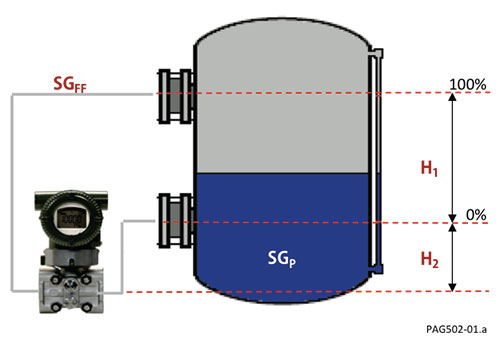

Figure 1: Closed Tank
Figure 1: Closed Tank

Now that you have the ElevationSuppression, and Span, the calibration values can be calculated for the 0% (Empty) arid the 100% (Full).

Cal Value (0%) = Suppression – Elevation

Cal Value (100%) = (Suppression + Span) – Elevation

Example: (using figure 1)

SGP0.9H210 inches
SGFF0.8H120 inches

Cal Value 0%) = Suppression – Elevation
Cal Value (0%) = (H2 x SGFF) – (H1 + H2 x SGFF)
Cal Value (0%) = (10 x 0.8) – (20 + 10) x 0.8
Cal Value (0%) = 8 – 24
Cal Value 0%) = -16 inH2O

Cal Value (100%) = (Suppression + Span) – Elevation
Cal Value (100%) = ((H2 x SGFF) + (H1 x SGP)) – (H1 + H2) x SGFF
Cal Value (100%) = ((10 x 0.8) + (20 x 0.9)) – (20 + 10) x 0.8
Cal Value (100%) = (8 + 18) – 24
Cal Value (100%) = +2 inH2O

Therefore, Calibrated Range would be:

-16 inH2O +2 inH2O
0%100%
EmptyFull
